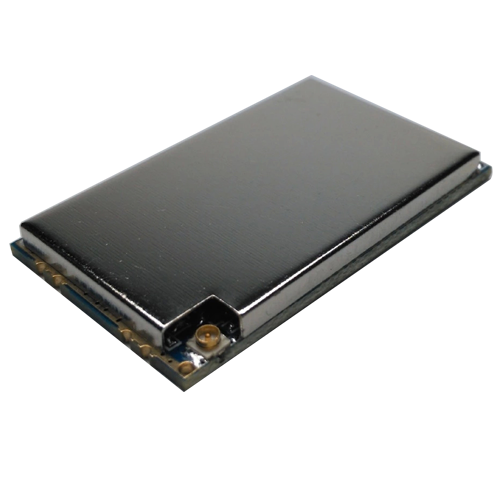

JT-2850 It is a small, ultra-low power, read/write module that supports the ISO 18000-6C protocol. It is compatible with a 40x40mm ceramic antenna and can read ordinary white cards. The measured value can reach 60~80cm .It can be easily embedded into handheld terminals such as tablets and PDAs to realize the RFID expansion function of such devices, and is widely used in other fields such as logistics management, product quality inspection, personnel management and so on.
Feature:
◆Working voltage range DC 5V/1A;
◆Low power output, less than 0.5W;
◆Can support two-way UART communication: one for RS485, other for RS232 communication;
◆Can built-in handheld device, PDA;
◆Using for Asset management, Staff management, etc.
For More detail : pls check our video: https://www.youtube.com/watch?v=0asVXPYLlQ4
|
Item No. |
JT-2850 |
|
Performance parameters |
|
|
Working Frequency |
902~928 MHz or 865~868MHz |
|
Protocol |
ISO18000-6C(EPC C1 GEN2) |
|
Communication port |
Two-way UART communication, one-way RS485 output, one-way RS232 output |
|
Software & SDK |
DEMO and C#, VC, VB, Java, DELPH, etc., |
|
RF power |
17~20dBm |
|
Operating power |
+3.6V~+5.5V |
|
Operating Current |
Peak current 200mA |
|
Reading range |
Stable writing 80~100cm(With 40x40 Ceramic Antenna) |
|
Physica parameters |
|
|

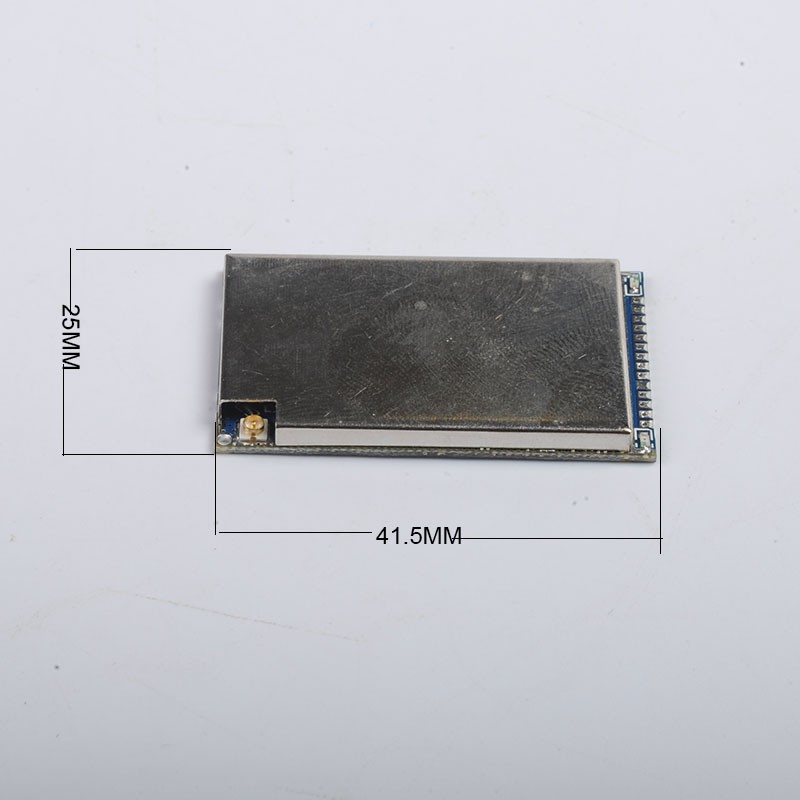

Item size |
41.5x25x3mm |
|
Antenna port |
IPEX |
|
Working temperature |
-20℃~+65℃ |
|
Storage temperature |
-45℃~+95℃ |
