Description
JT-9282 adopts the clip of Impinj R2000, which could achieve high speed and rapid date processing operation. Full support ISO-18000-6C(EPC C1 GEN2) protocol.
JT-9282 is easier to install for small size and light weight.
There will be flashing and buzzer when read tag.

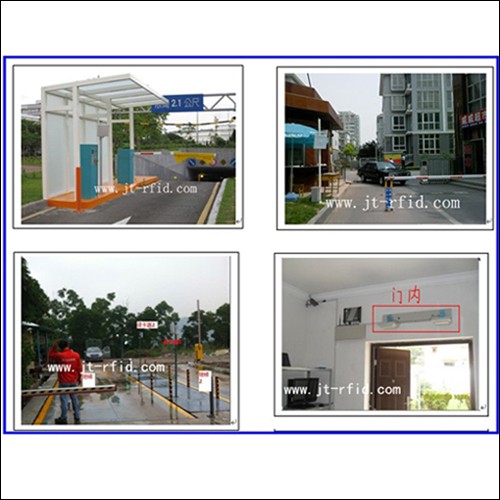

JT-9282 could be used in variation area, such as vehicle management, customer management, logistic management and production automatic management, etc.
Feature
Built in the RFID module of R2000
The stable reading distance could reach 8M
Multiple tags reading ability
High sensitivity to tag
Support RSSI indication
Waterproof and sunscreen
Support SDK dynamic link libraries(DLL) and secondary development
|
Item No. |
|
|
JT-9282A |
RS232,RS485 |
|
JT-9282B |
RS232,TCP/IP |
|
JT-9282W |
RS232,WIFI |
|
JT-9282G |
RS232,GPRS |
|
Performance Parameters |
|
|
Working Frequency |
902~928 MHz or 865~868MHz |
|
Protocol |
ISO18000-6C(EPC C1 GEN2) |
|
Chip |
Impinj R2000 |
|
RF power |
0～30dBm(Adjustable) |
|
Software & SDK |
DEMO and C#, VC , Java |
|
Industrial lightning protection |
6000V |
|
Low temperature protection |
Northeast, Northwest extremely cold region, low temperature protection |
|
Reading range |
stable reading range 8M(Depends on tag & environment) |
|
Tag handling volume |
0-200 tags |
|
Storage space |
1M or 8M Flash save without power supply(customized) |
|
Real-time clock |
without power supply, real-time clock save and working(customized) |
|
Frequency modulation |
hopping or fixed frequency |
|
Input/output port |
Two-way relay output(customized), two-way I/O input(customized) |
|
RSSI |
RSSI numerical test |
|
Antenna gain |
8dBi circular polarization |
|
Working way |
Buzzer & LED |
|
Power |
12V/3A Adaptor |
|
Ethernet power supply |
POE(customized) |
|
Physical Parameters |
|
|
Item size |
220x220x50mm |
|
Package size |
410x270x110mm |
|
Net weight |
3KG |
|
Shell material |
ABS |
|
Working temperature |
-20℃~+65℃ |
|
Storage temperature |
-45℃~+95℃ |
