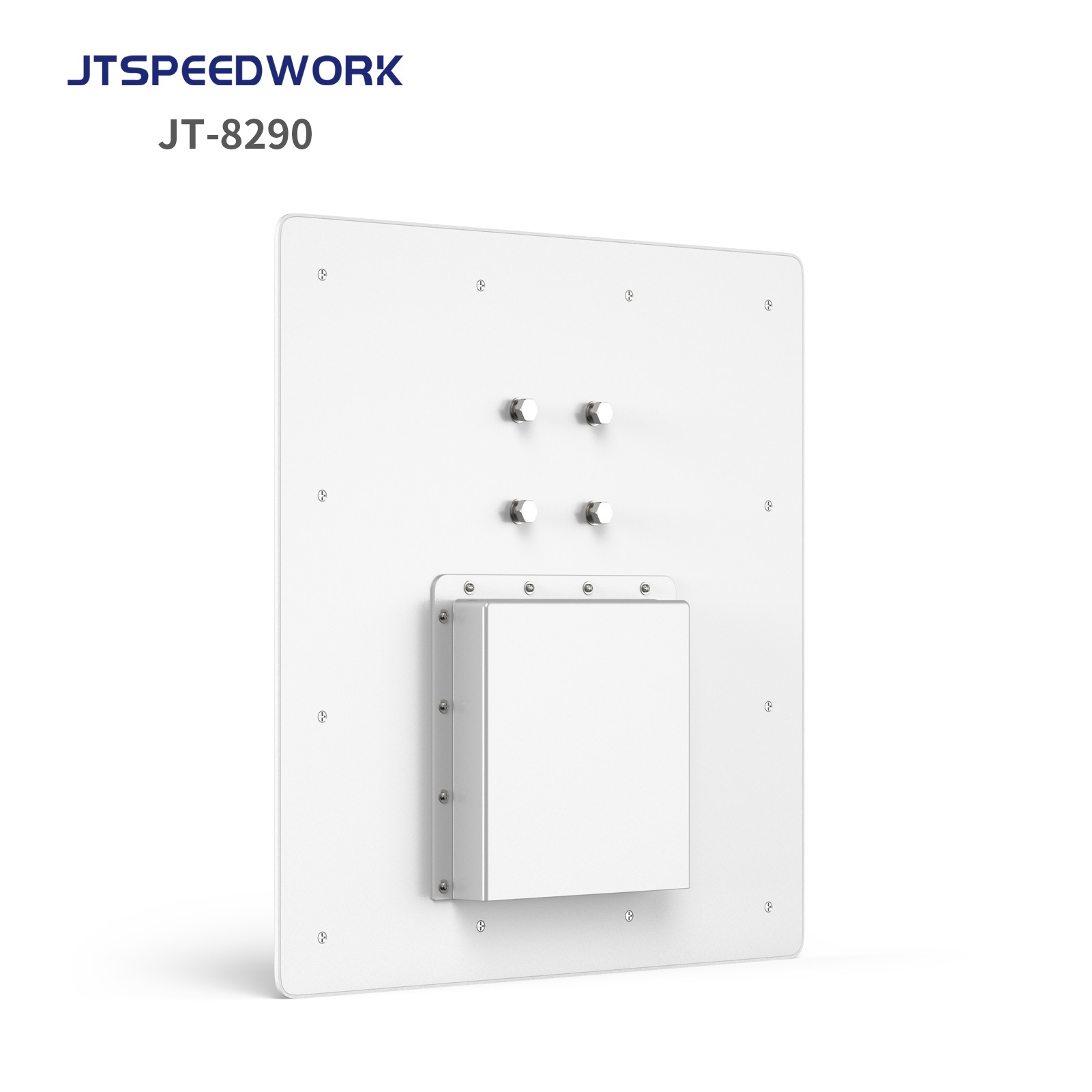

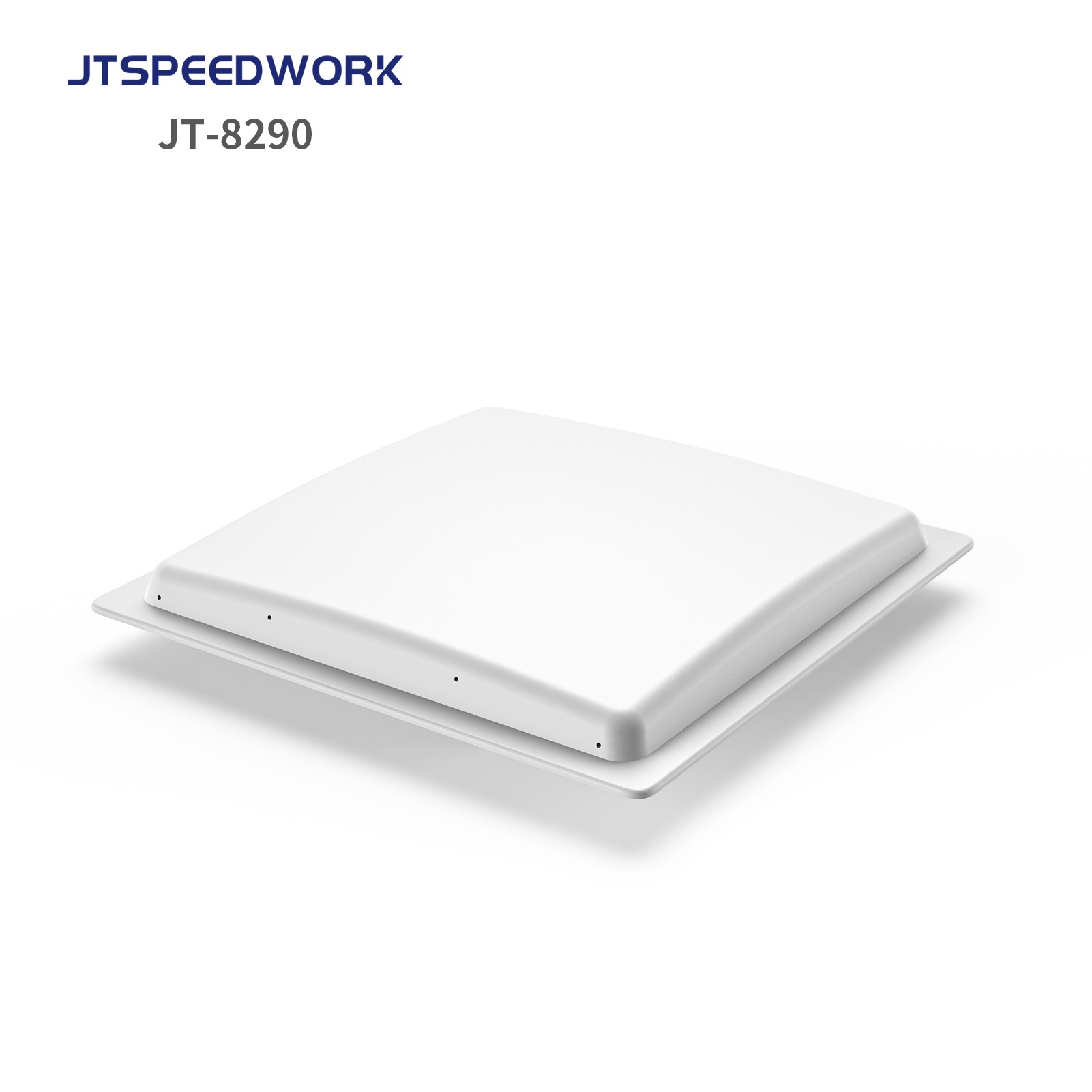

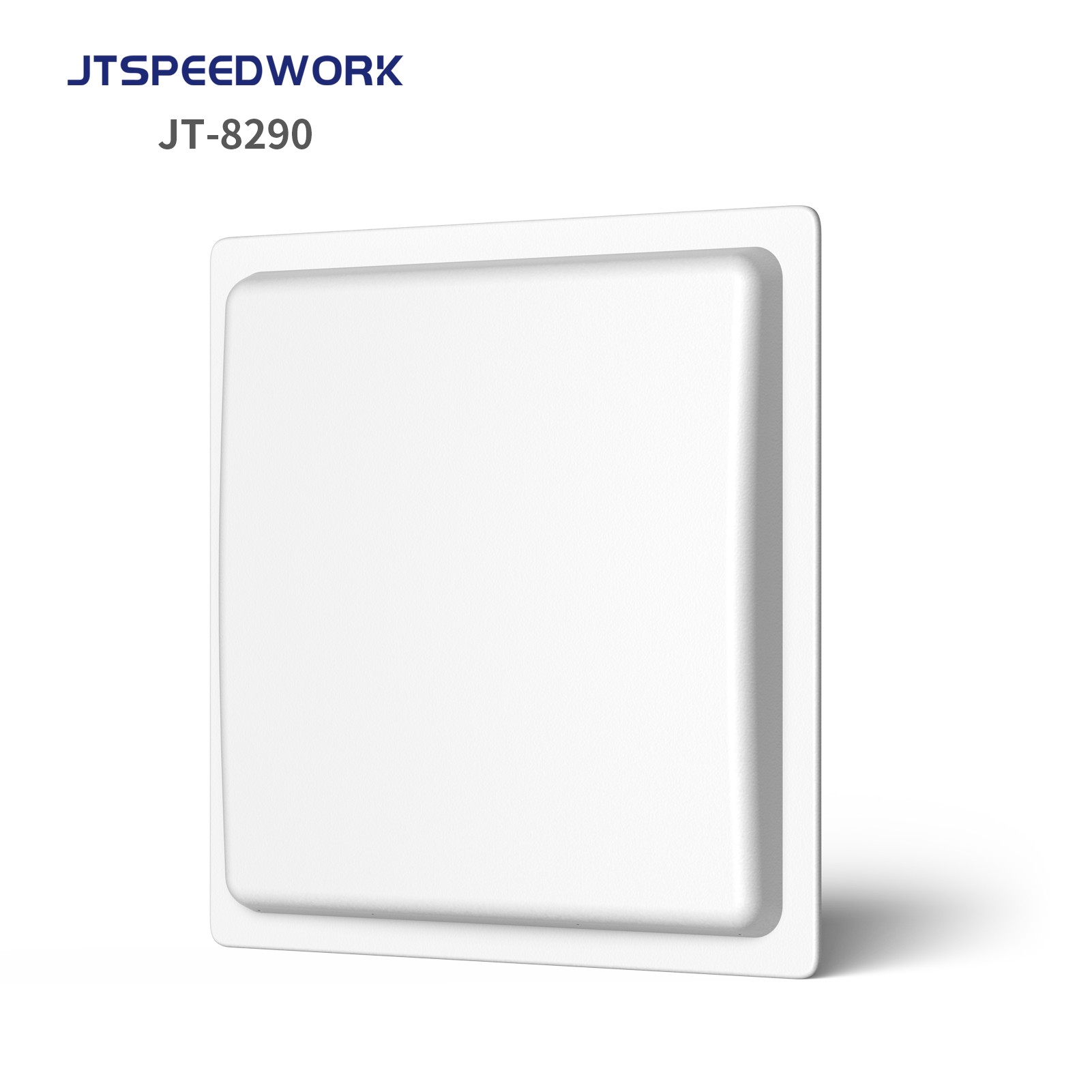

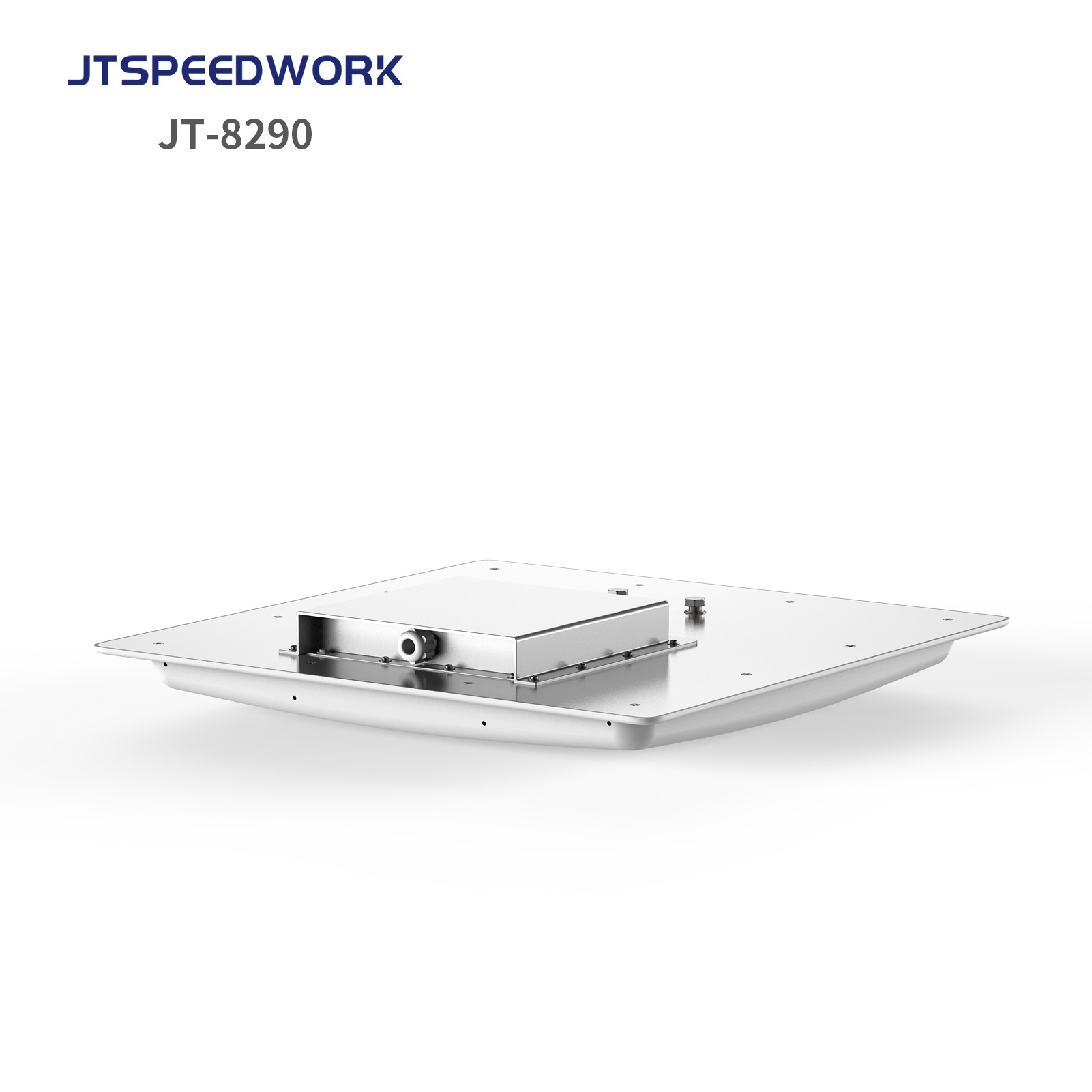

JT-8290 0-25m UHF RFID Long Range Reader for Vehicle Management
JTSPEEDWORK JT-8290 UHF RFID long-range reader features 0-25m reading range, 12dBi antenna & ISO18000-6C support, multi-interfaces and working modes. Excels at vehicle, logistics, customs and manufacturing management with stable single-tag reading.
Item No :
JT-8290Color :
WhiteAntenna gain :
12dBi LinearCommunication Interface :
RS232,RS485,Wiegand(standard),TCP/IP(optional)Protocol :
ISO18000-6CWorking frequency :
EU:865-868 | US:902-928 MHz| Item No. | JT-8290 | |||
| Physical parameters | Antenna | |||

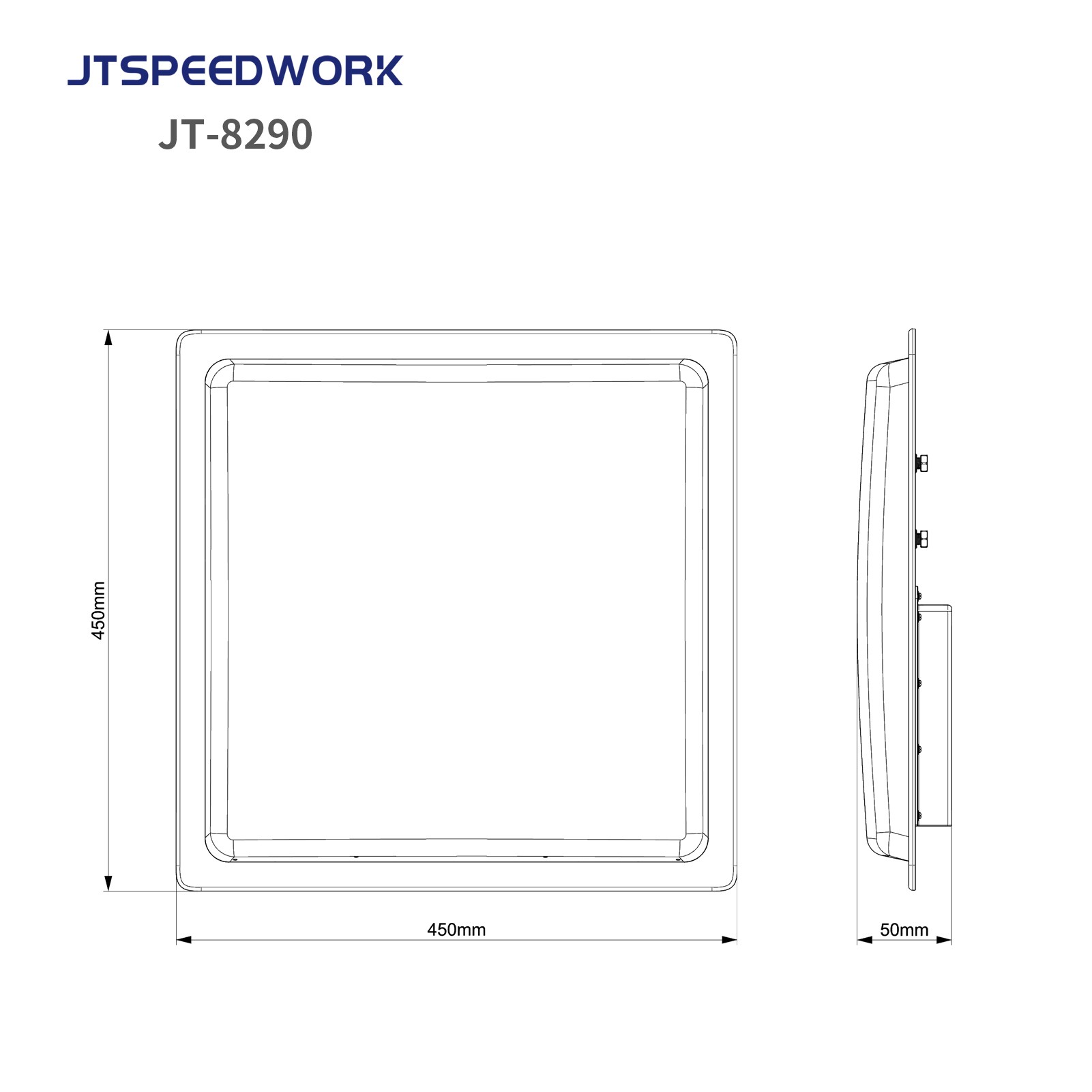

| Dimensions | 450(L)*450(W)*50(H)mm | 12dBi linear polarized antenna (built-in) | ||
| Net weight | 2.15Kg | |||
| Material | ABS & aluminum alloy | Power Supply | ||
| Input Voltage | DC 12-24V /3A | |||
| RFID Parameters | Peak current | 500mA | ||
| Air Protocol | ||||
| EPC global Gen2(ISO18000-6C) | User Environment | |||
| Working frequency | Operating Temp. | -40 ℃ to 75 ℃ | ||
| EU:865-868 | US:902-928 MHz (custom-design for frequency band) | Storage Temp. | -40 ℃ to 85 ℃ | ||
| RF power | Humidity | 5-90% non-condensing (+25° C ) | ||
| 0-30dBm(adjustable) | ||||
| Work mode | Reading Performance | |||
| Master-slave, timing,trigger mode | Reading distance | |||
| I/O | US band:0-25m;EU band:0-20m stable reading(relate to tag and environment) | |||
| 1 trigger input or 2 relay outputs (customized) | Model Type | |||
| Notification | JT-8290A | RS232,RS485,Wiegand | ||
| LED indicator,buzzer | JT-8290B | RS232,TCP/IP,Wiegand | ||
| SDK | ||||
| C# , Java , C++ | ||||
