LF RFID Tag

Name: JT-A002 RFID Tag Chip Pet ID Animal Microchip Tracking Tags Injectable 134.2khz Animals Implanted With Disposable Needle
Availability: InStock

Home LF RFID 125/134.2KHz LF RFID Tag

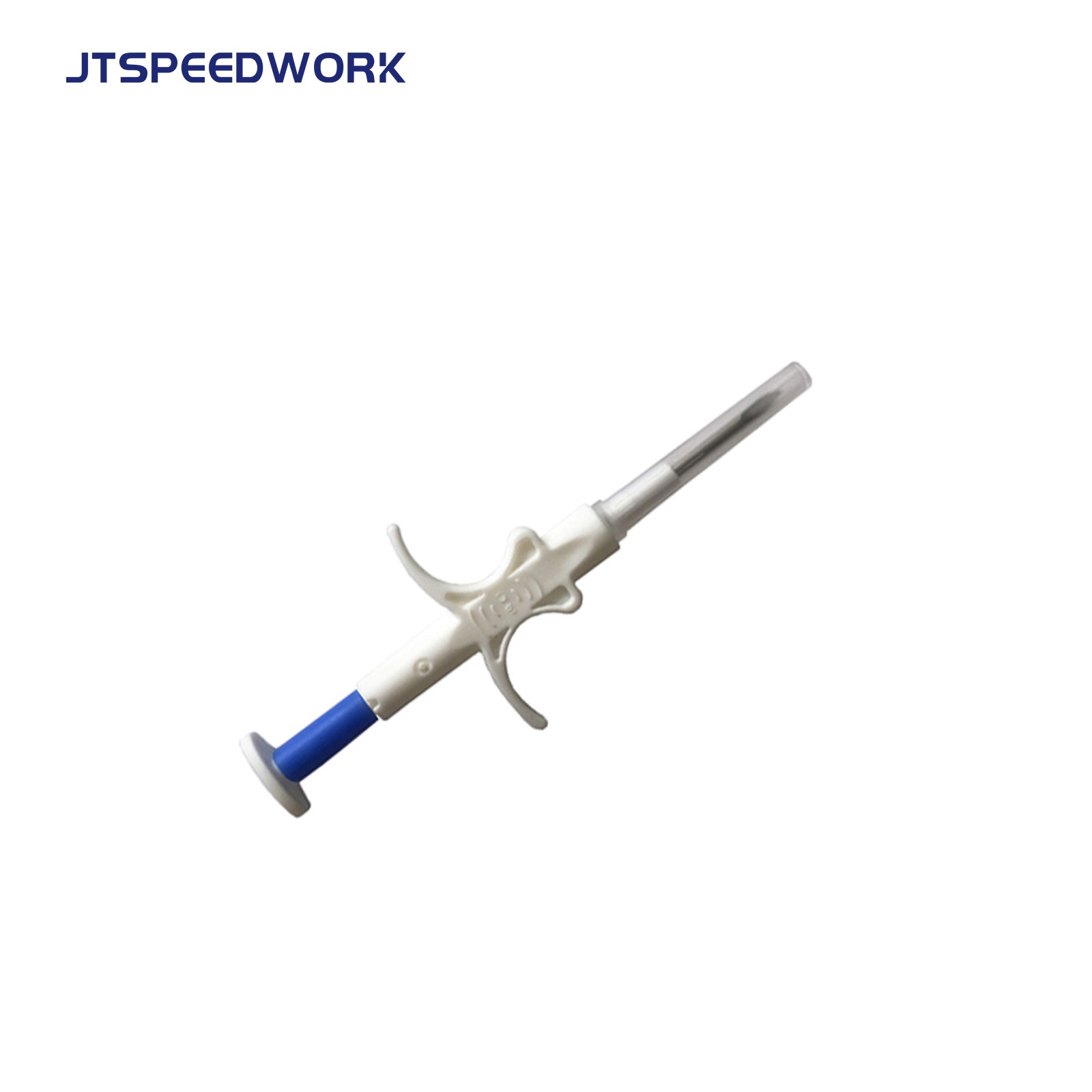

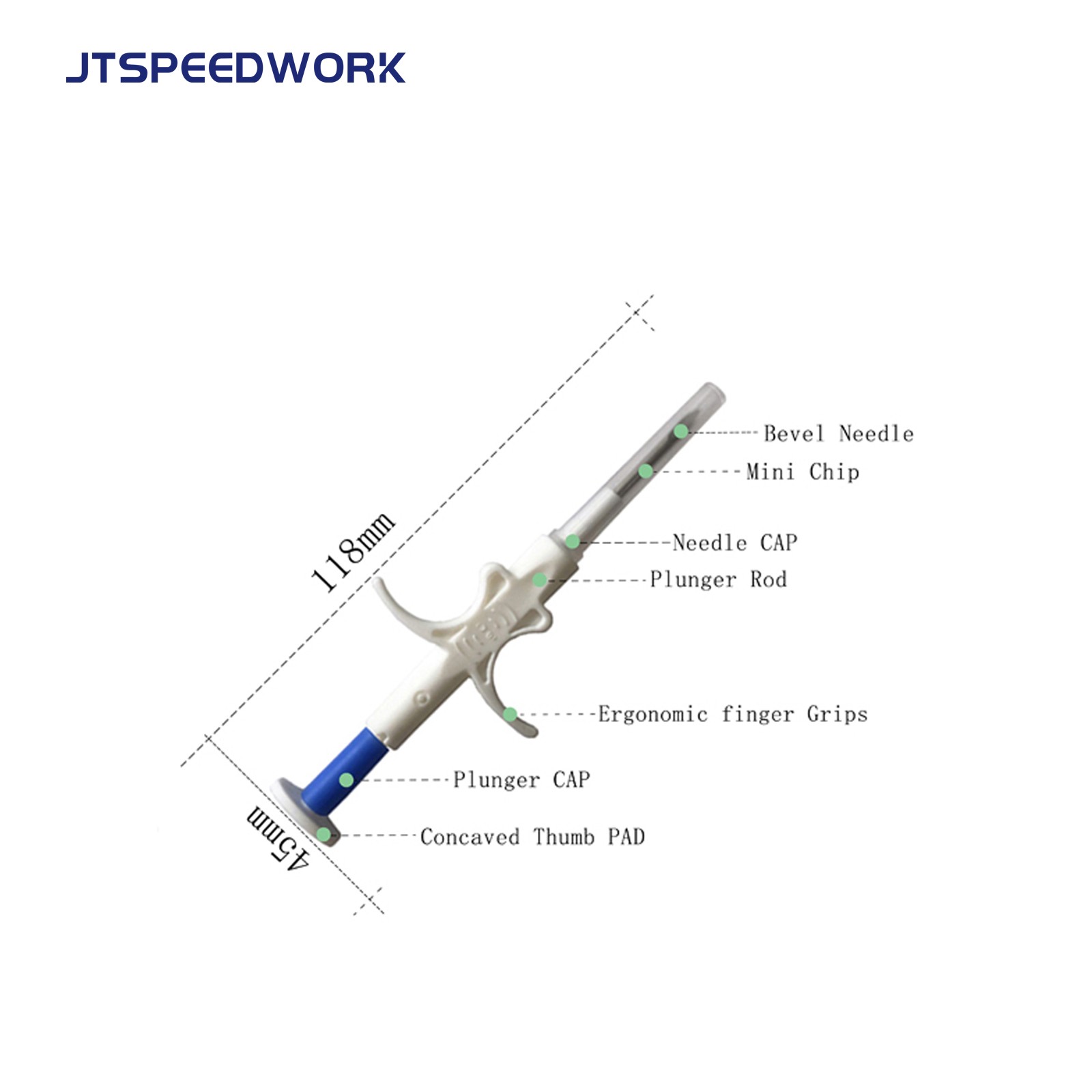

JT-A002 RFID Tag Chip Pet ID Animal Microchip Tracking Tags Injectable 134.2khz Animals Implanted With Disposable Needle

The JT-A002 Integrated Passive Transponder (PIT) is an ISO11784/85 compliant Radio Frequency Identification (RFID) tag and is used with an ISO11784/85 compliant reading device. Often called implantable biochips.

Protocol :
FDX-B
Working frequency :
134.2KHz

Inquire Now

Electrical Characteristics

Coding standard ISO 11784

Communication protocol ISO 11785

Duplex mode FDX-B

Excitation frequency 134.2 kHz ±1.5 kHz

Reader frequency band 129.0-133.2 kHz /135.2-139.4 kHz

Modulation type AM/PSK

Physical Properties

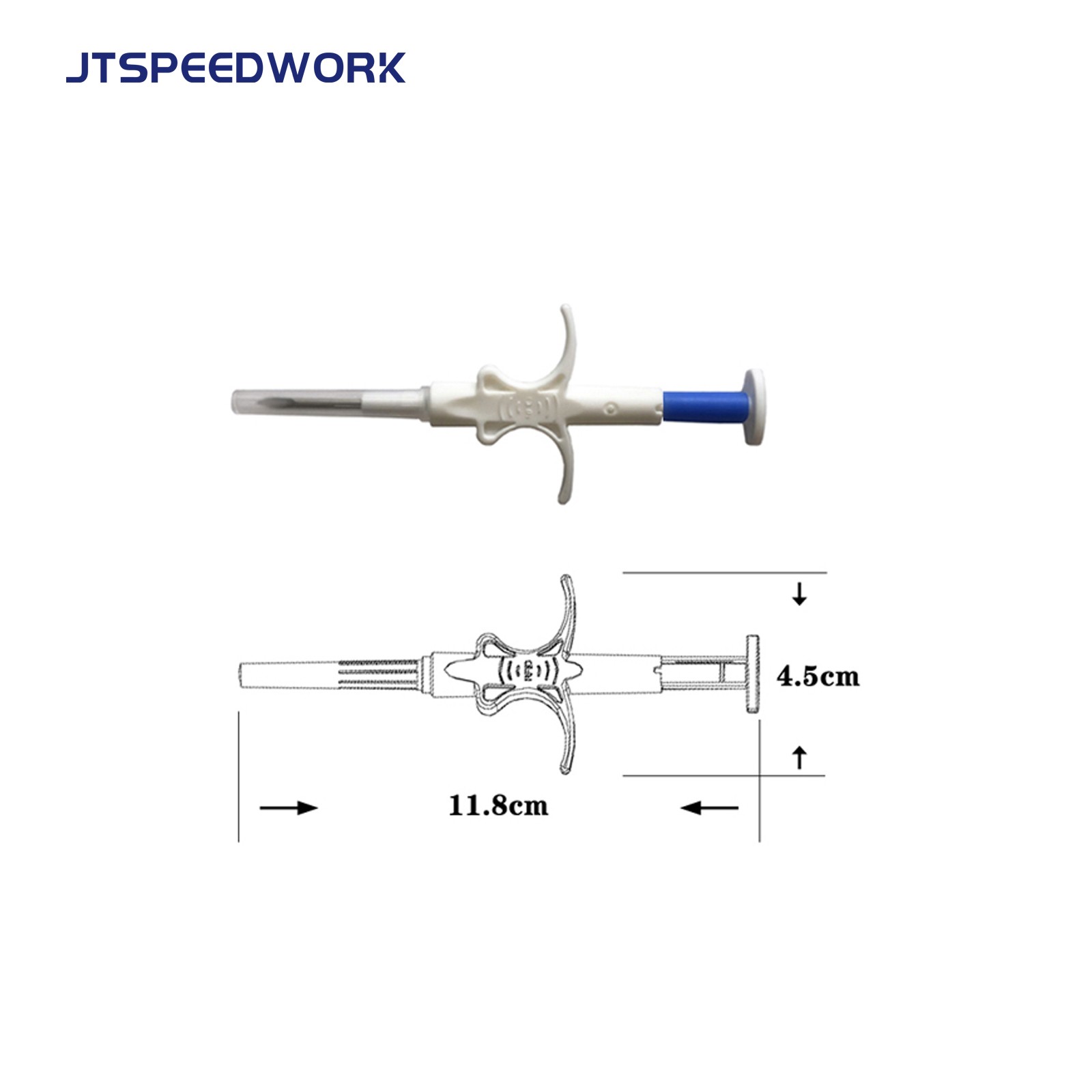

Size: 1.4*8mm , 2*12mm

Weight 100 mg (±35mg)

Encapsulation material glass

Protection grade IP68 50 meters water immersion

Operating temperature -2 0 ºC + 8 0 ºC

Storage temperature - 10 ºC + 8 0 ºC

Humidity 0 to 100% (condensation)

Altitude 100 to 3000 meters

Mechanical shock IEC 68-2-29

Mechanical vibration IEC 68-2-6

Chemical resistance to all petroleum-based solvents, aqueous solutions, organic substances, acid/alkaline substances, corrosive salts

Biocompatible bioinert glass Anti-static 5kV/2 times

Electromagnetic compatibility FCC Part 15, IC RSS-210, EN55022

Reliability mean time between failures of 100,000 hours

Life expectancy 10 years (keep package intact)

The production process includes inverted packaging/glue potting glass tube/sintering/fully automatic assembly/sterilization

Read Properties

Reading distance 50-500 mm (determined by reader power and antenna size)

reading speed 18 reads/second (different speed) / 32 reads/second (continuous)

Reading direction 0±60º on-axis with optimal adjustment of antenna
Reading speed depends on antenna, reading system and tag orientation

RF signals that power reading and writing devices
