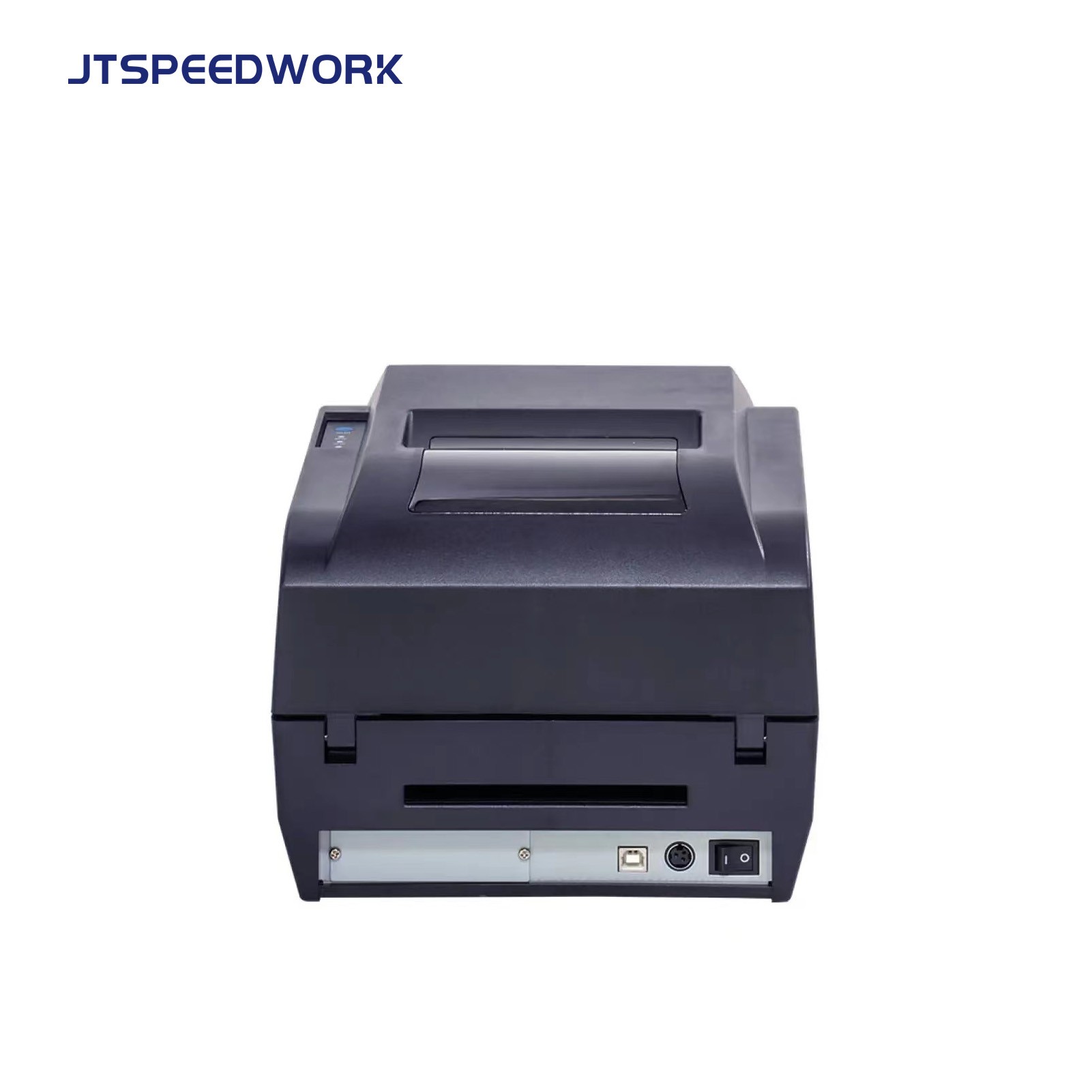

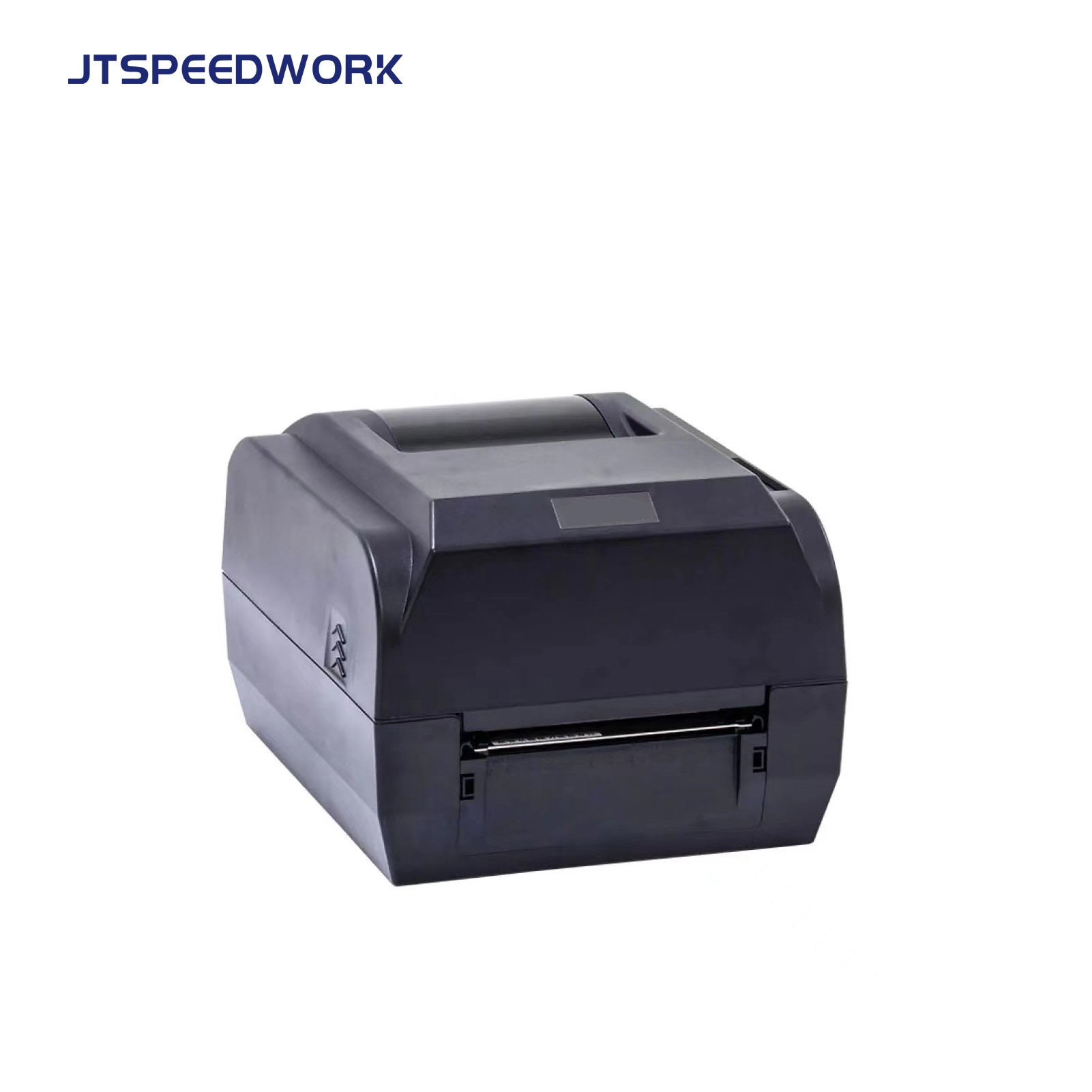

JT-DL630 Barcode RFID Printer 300DPI

JT-DL630 Barcode RFID Printer 300DPI
JT-DL630 Barcode RFID Printer 300DPI
JT-DL630 Barcode RFID Printer 300DPI

JT-DL630 Barcode RFID Printer 300DPI

RFID automatic calibration
The RFID automatic calibration function can automatically drive the power of the antenna according to tags of different specifications and chips, easily set the reading and writing conditions of RFID tags, and greatly reduce the time of manual debugging of printer parameters. (Press the "Power On" button twice to automatically calibrate the RFID power)

Automatic labeling function for waste labels
The automatic marking function of discarded labels means that when a defective or damaged label is found during the label reading and writing process, the printer can automatically detect and print the word "obsolete" on the surface of the label, which facilitates customers to sort out defective labels as soon as possible and avoid the mixing of defective labels.

Reliable tag data writing
The workflow of printing first and then reading and writing the label IC can support the printing, reading and writing of large batches of labels at one time, while ensuring a 100% defective label detection rate and ensuring the accuracy of subsequent business operations.

  • Item No :

    JT-DL630
  • Color :

    Black
Inquire Now



Item No. JT-DL630
Print parameters   Physical properties
Printing method Thermal/thermal transfer printer   Dimensions 230(width) ×290(Deep) ×176(high)mm
Printing width (loading paper width) 106mm   Color Black
Printing speed 102mm/s(300dpi)   Weight About 3kg
Thermal head Point spacing 0.084mm   Working environment Temperature: 5~40
Resolution 300DPIx300DPI   Humidity: 20%~95%RH (no condensation)
      Storage environment Temperature: -20~60
      Humidity: ≤95%RH (40, no condensation)
Barcode   RFID
1D code

ZPL:Code11; Interleaved 2 of 5; Code 39; Code 49;

Planet Code;EAN-8; EAN-13; UPC-E;UPC-A; Code 93;

Code 128;Industrial2 of 5; Standard 2 of 5;Codabar;

 MSI; Plessey

  RFID tag writing method Print first and then write, which can support printing and writing to EPC at the same time, only reading and writing EPC, printing only, and reading label TID, etc.
QR code

PDF417; CODABLOCK; Maxicode; Aztec; QR Code ;

Data Matrix

  Support RFID standards 920.5-924.5MHz; support ISO18000-6C, EPC Gen2
      Supported label types Supports ordinary self-adhesive RFID and flexible anti-metal tags below 1.25mm *Special tags depend on the specific chip
Character   Ribbon specifications
Character set

Chinese character GB18030 Chinese character

 library 24*24Bit map,commonly used single-byte fonts(ZPL):FontA,FontB,FontD,FontE,FontF,FontG,

FontH,FontV0,FontGS,FontP,FontQ,FontR,FontS,

FontT,FontU,FontV

  Inner diameter 25.4mm
Custom fonts can be downloaded to FLASH, SDRAM   Outer diameter 68mm
Code page PC850;PC1250;PC1252;PC1253;PC1254;PC1255   Length 300 meters
Zoom/Rotate

It can be enlarged in steps of 1 to 8 times both

horizontally and vertically; rotation printing (0° ,90°,

180°,270° )

  Width 33~110mm
Paper handling   Interface
Paper specifications Paper thickness: 0.06~0.254mm   Standard configuration USB interface (2.0 full speed)
Paper width: 25~118mm   Optional RS-232 serial port (DB25)
Paper length: 8.9~400mm   Parallel Centronics(IEEE-1284)
Outer diameter: 127mm(MAX)   Ethernet port:10M/100M
Inner diameter: 25.4/38.1mm   Wi-Fi interface (802.11b/g/n)
Paper type

Roll type, folding type (continuous paper,

 non-continuous paper, continuous tag,

wristband, ordinary paper or various bills)

  Bluetooth interface: SPP
Paper separation method

Manual tearing, automatic cutting, and peeling

methods


Power parameters   Detection function
Input 100~240VAC;Frequency range: 50~60Hz   Standard sensor Black mark detection, label detection, mechanism detection, ribbon detection
Output 24VDC; 2.15A   Optional sensor Label peel detection
Memory   Safety
SDRAM 16MB   Safety standard GB4943.1-2011
FLASH 8MB   Radio Interference (EMC) Class B
      Certification 3C, UL, FCC, CE, Energy Star
Software   Reliability and warranty
Driver (Windows32bit/64bit, Linux), Barcode Pass BarEasy,SDK system   Thermal head Lifespan 150KM(Calculated based on the use of designated thermal paper and a printing rate of 12.5%)
Graphics   Emulation language
Graphics processing

Graphics processing monochrome PCX BMP Image

 data can be downloaded to SDRAM

  Simulated zebra,Simulate EPSON ZPL,EPL,TSPL
Options   Control Panel
Cutter, stripper   Button One key (paper feed)
      Indicator light Three lights (power, fault, status (no paper/ribbon))

JTSPEEDWORK Maintenance Plans.

Protect your JTSPEEDWORK devices for constant peak performance with these recommended maintenance plans. Device uptime, confidence, and savings — that's what you get with JTSPEEDWORK maintenance plans. You protect business-critical devices and eliminate disruptions and unplanned repair expenses.
