UHF RFID seal tag is specially designed for the tracking of fowl, food, container seals and express parcels, the classification of electricity power lines, the management of telecommunication line, guardianship and so on. It would not be affected by the strapping material and could be used under severe environments.

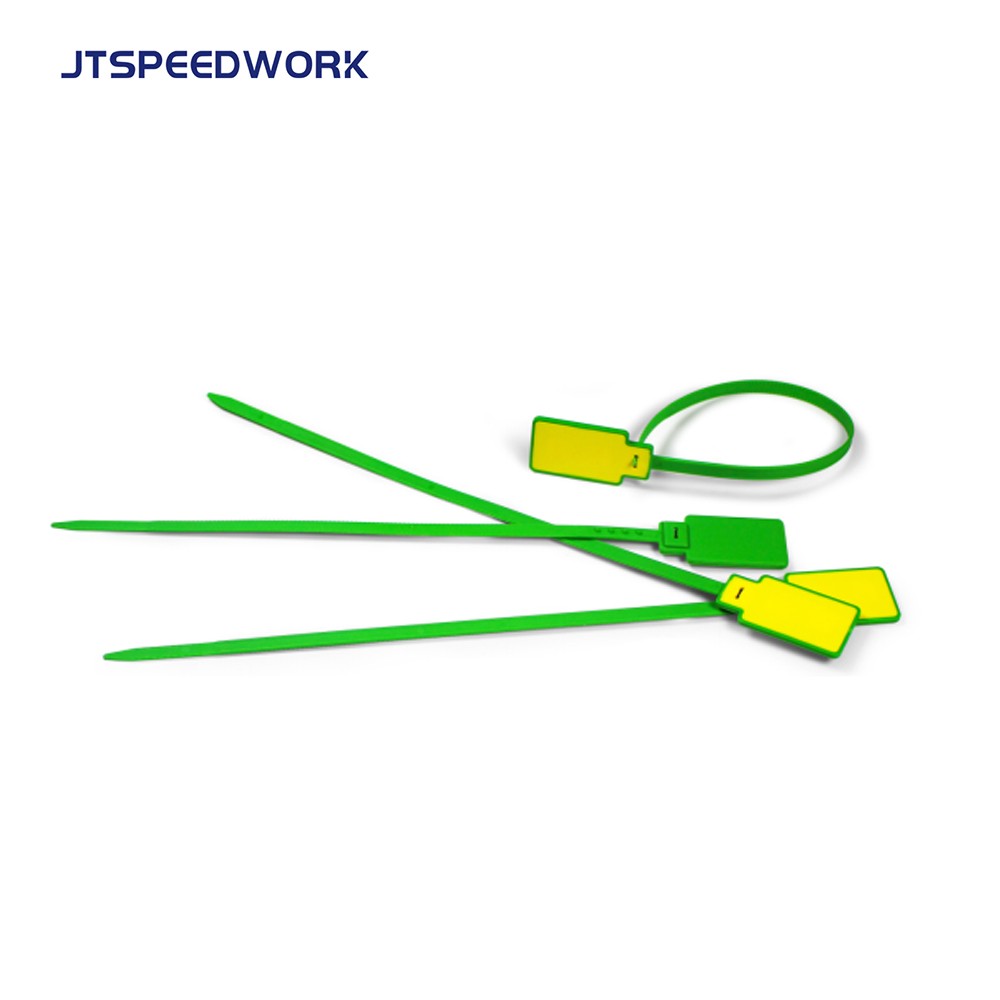

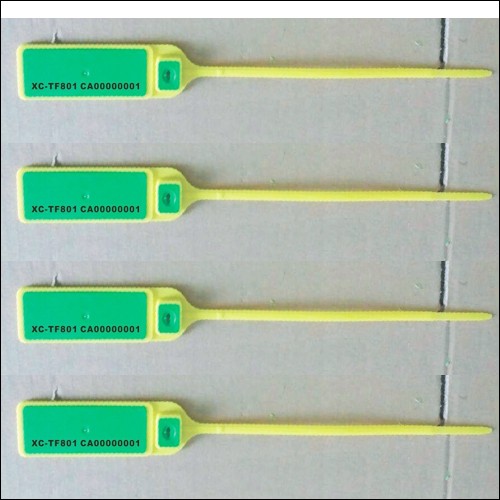

JT-Z10530 UHF RFID Cable Tie Tag
Application:
The cable tie tag is mainly used in containers and containers to prevent the dropping and loss of goods and facilitate the inquiry, inventory and verification of goods information. It is also suitable for other similar operating occasions.
In logistics transportation, large containers are usually used, and items are put into the containers for collective transportation. Applying this container tie label can seal the container, and this electronic label can record all the cargo information of the container. During the transportation process, the transportation status can be monitored throughout the entire transportation process so as to reach the destination accurately and safely. After arriving at the destination, it is convenient for handover and inventory.
Features:
1. It is waterproof, anti-collision, anti-corrosion, and durable.
2. The metal shrapnel is installed in the lock part, and the cable tie cannot be withdrawn after being inserted, and the lock effect is excellent.
3. The chip is in the outer position of the tag binding, which is not affected by the material of the binding material, and the reading is stable.
|
Material |
PP Plastic |
|
|

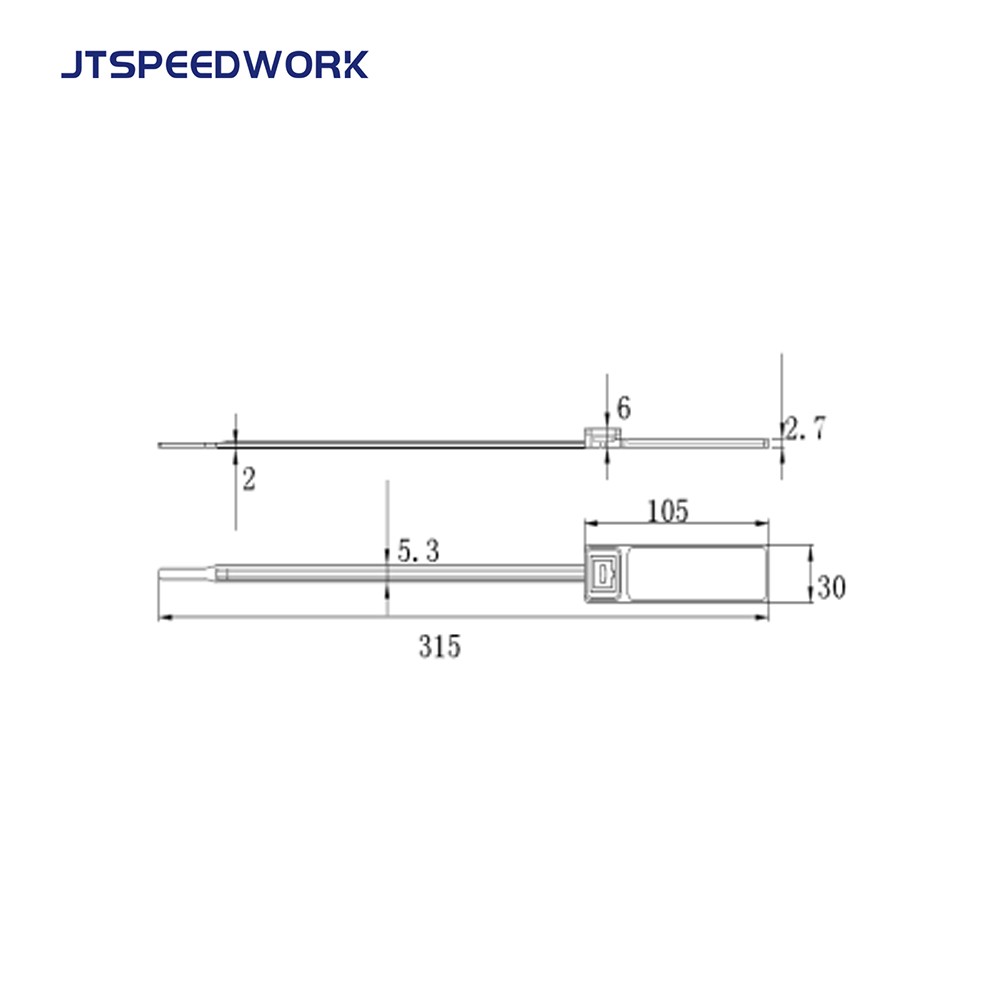

Dimensions |
Signage size |
105mm×30mm×2.7mm |
|
Benchmark size |
210mm×5.3mm×2mm |
|
|
Total length |
315mm |
|
|
Chip |
Alien H3 |
|
|
Working frequency |
860-960MHz(ISO/IEC 18000-6C) |
|
|
Working temperature |
-10~65℃ |
|
|
Reading distance |
The reading distance of the fixed reader is 0-10m, and the reading distance of the handheld reader is 2-3m (depending on the power of different reading and writing equipment and machines) |
|
|
Pull force |
250-300N |
|
|
Locking force |
210-230N |
|
