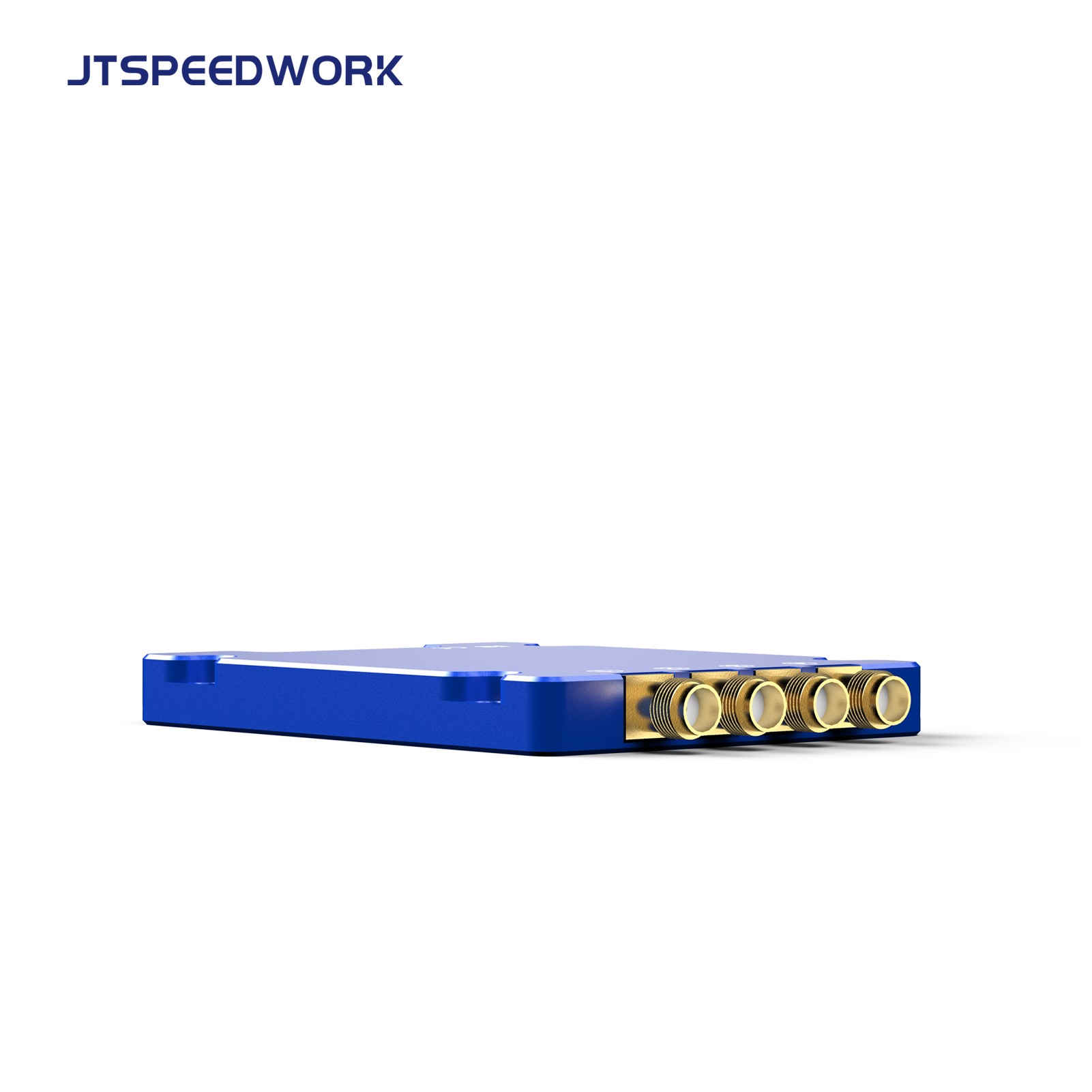

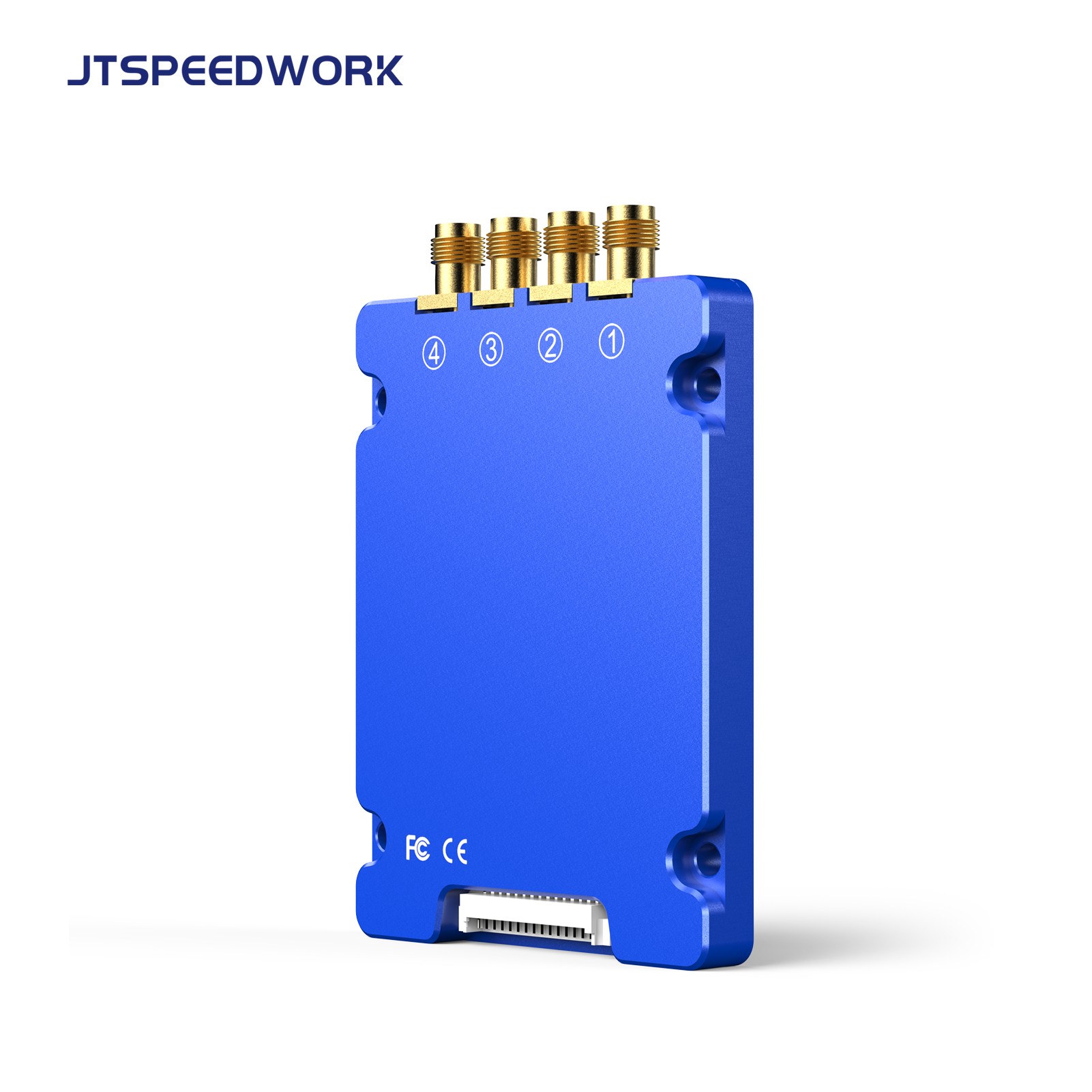

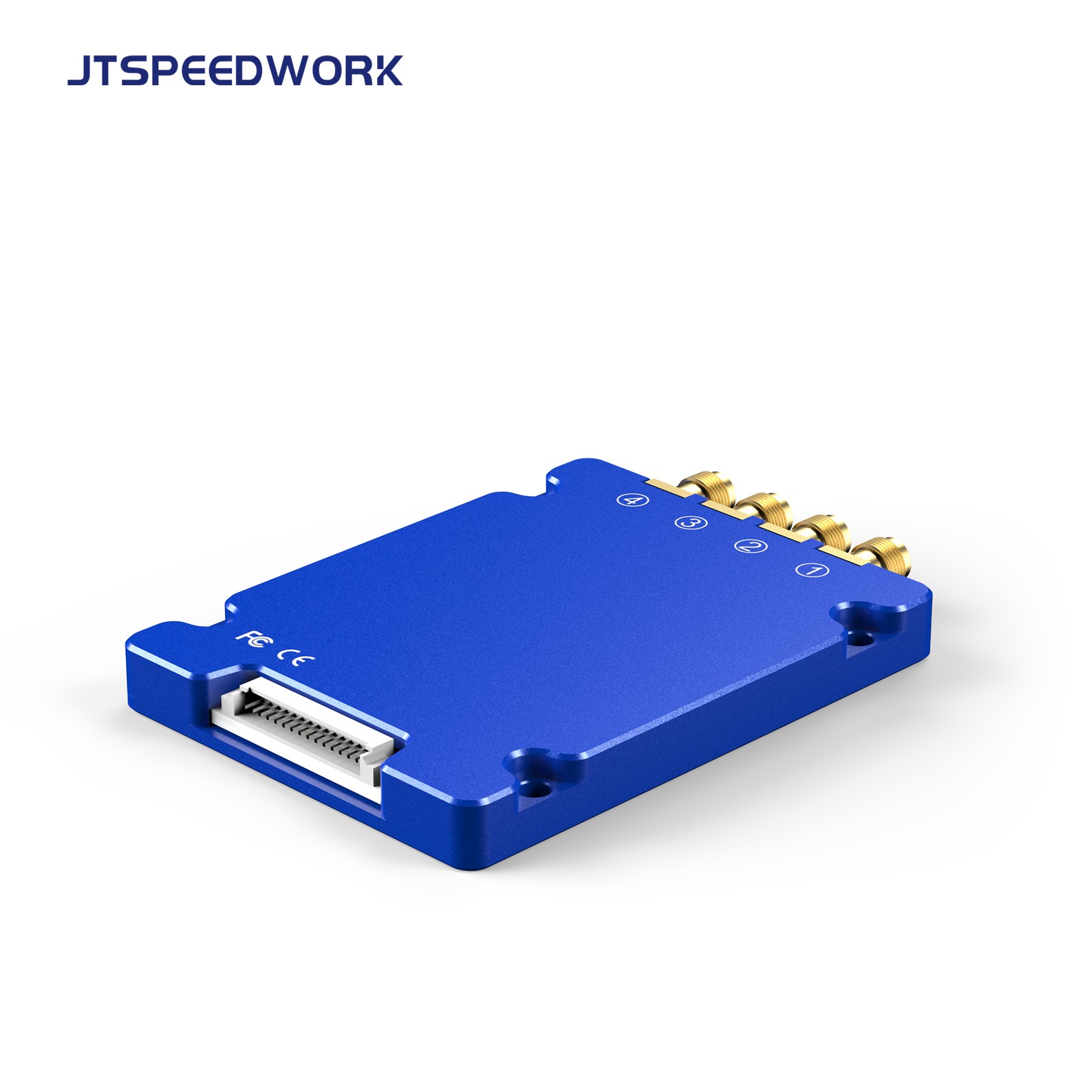

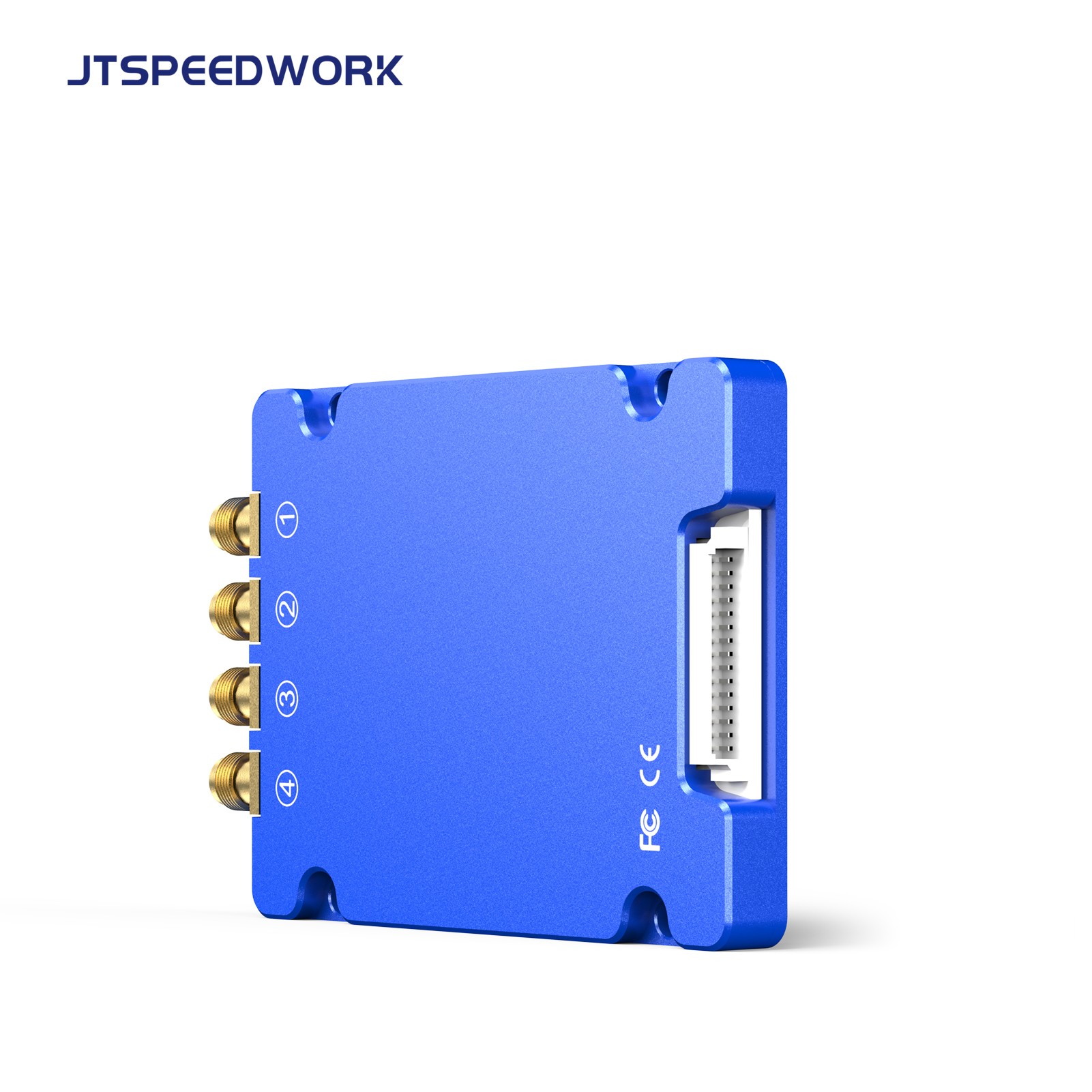

JTSPEEDWORK JT-2540 TM200 UHF RFID 4-port Module, powered by TM200 RF chip, complies with ISO18000-6C protocol and works at 860-960MHz. It features 4 SMA female ports, 13~33dBm adjustable RF power, >700 tags/sec reading speed and up to 7m reading range. With aluminum shell, it supports Uart TTL, RSSI & antenna detection, and offers C#/Java/C++ SDK for secondary development, suitable for industrial scenarios.
Item No :
JT-2540Color :
BlueCommunication Interface :
Uart TTLProtocol :
ISO18000-6CWorking frequency :
860-960MHzRF chip :
TM200| Item No. | JT-2540 | ||
| Physical parameters | Antenna | ||

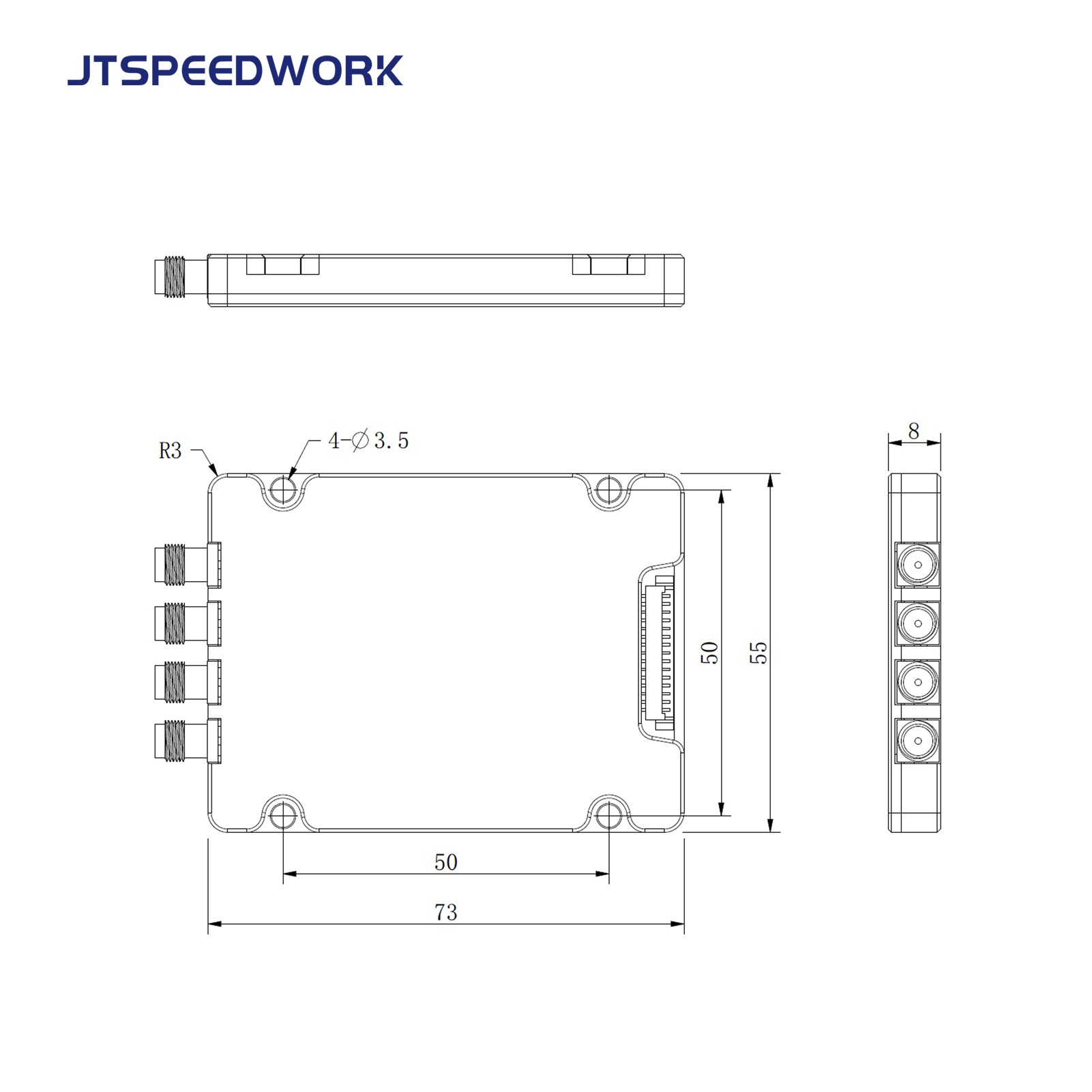

| Module size | 72*43.6*11mm | Antenna Ports | |
| Weight | 73g | 4 SMA-female conntectors | |
| Material | PCBA board | Power Supply | |
| Input Voltage | DC 3.7V~5.0V | ||
| RFID parameters | Power Consumption | 6.36W(@max RF power 33dBm) | |
| Air Protocol | |||
| EPC global Gen2(ISO18000-6C) | User Environment | ||
| RF Chip | Operating Temp. | -20 ℃ to 70 ℃ | |
| TM200 | Storage Temp. | -30 ℃ to 80 ℃ | |
| Working frequency | Humidity | 5% - 95% RH | |
| 860-960 MHz | |||
| RF power | Reading Performance | ||
| 13~33 dBm(adjustable) | Reading rate | ||
| Work mode | >700 times/sec | ||
| Fixed / hop frequency | Reading distance | ||
| Tag RSSI | 0-7m | ||
| Supported | |||
| Antenna Detector | |||
| Supported | |||
