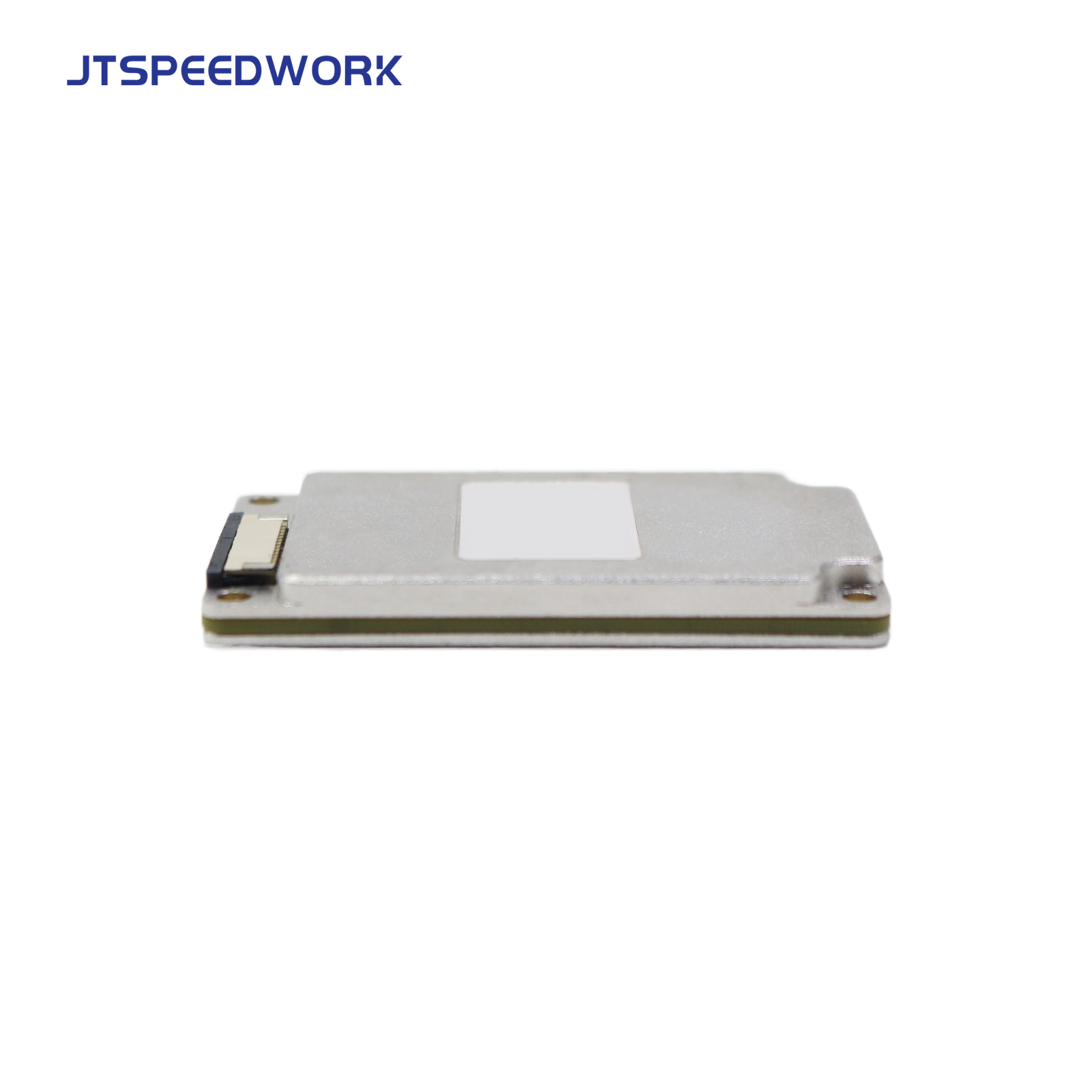

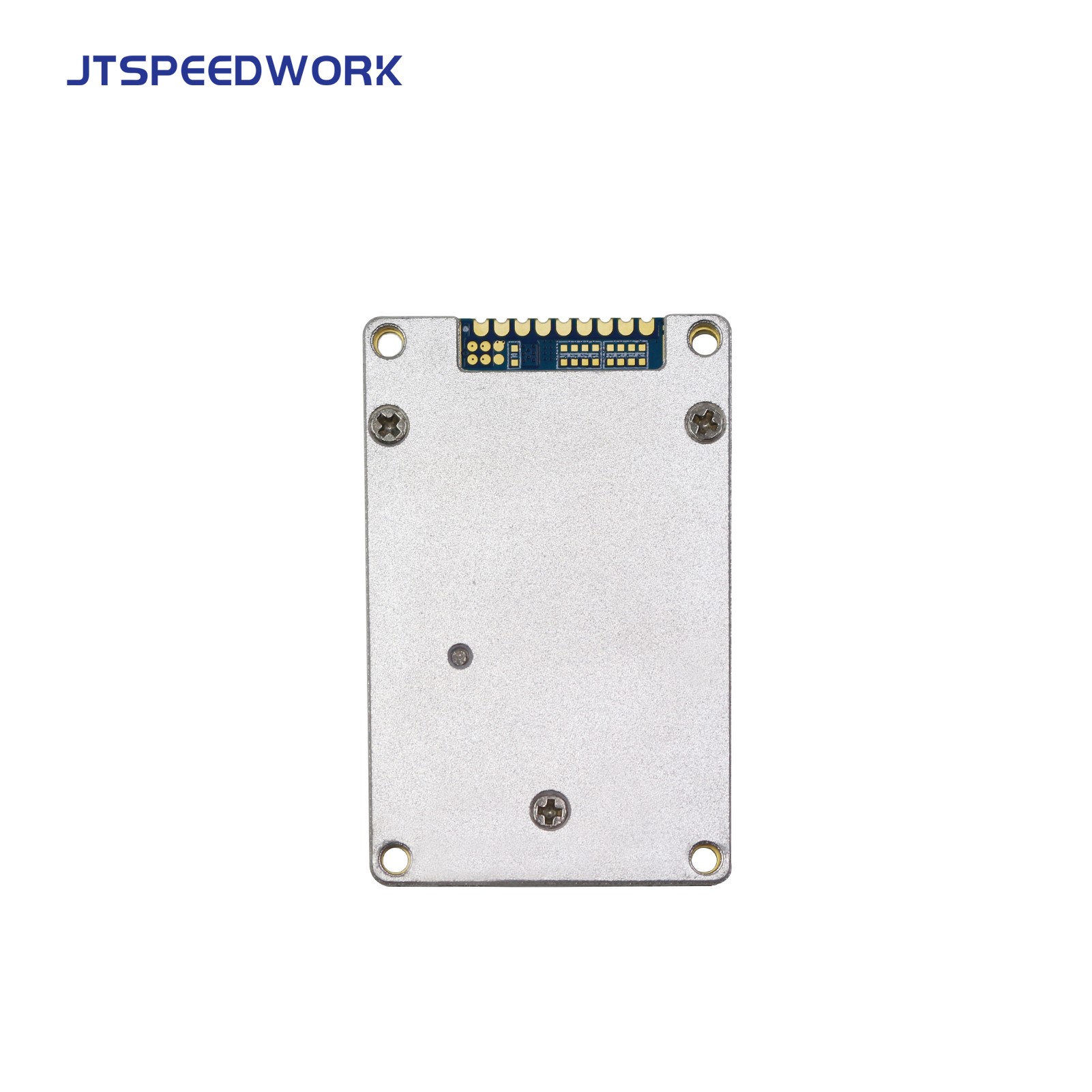

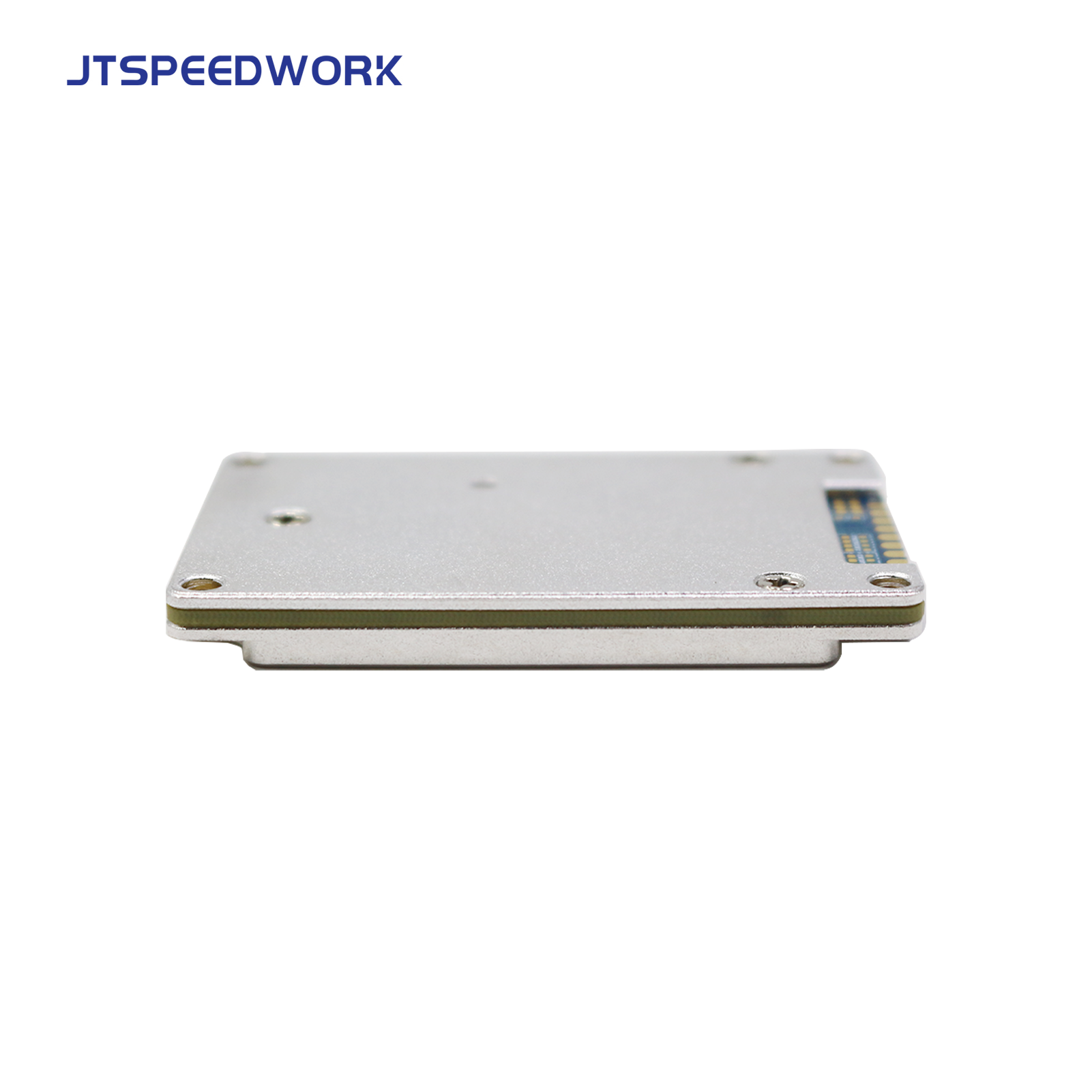

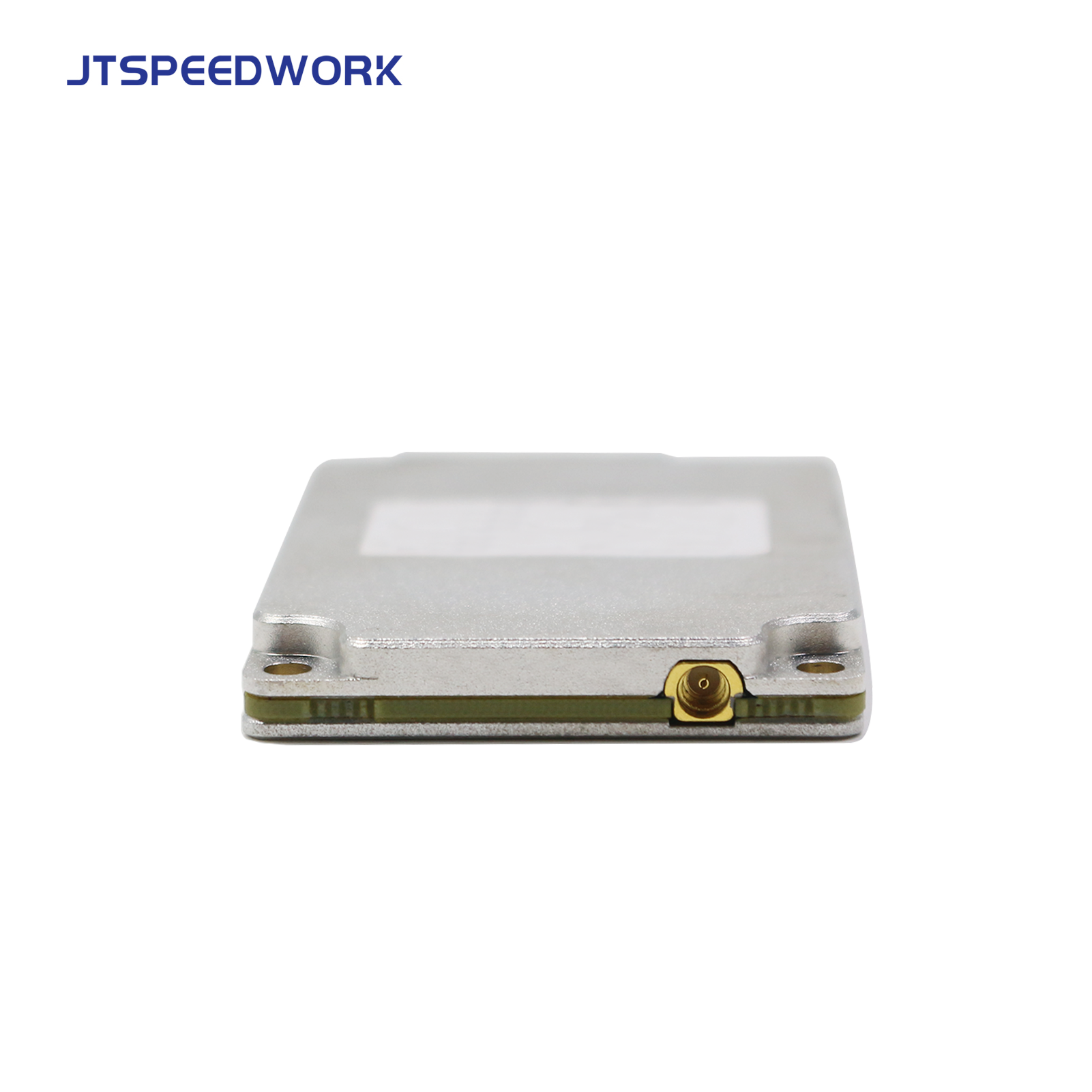

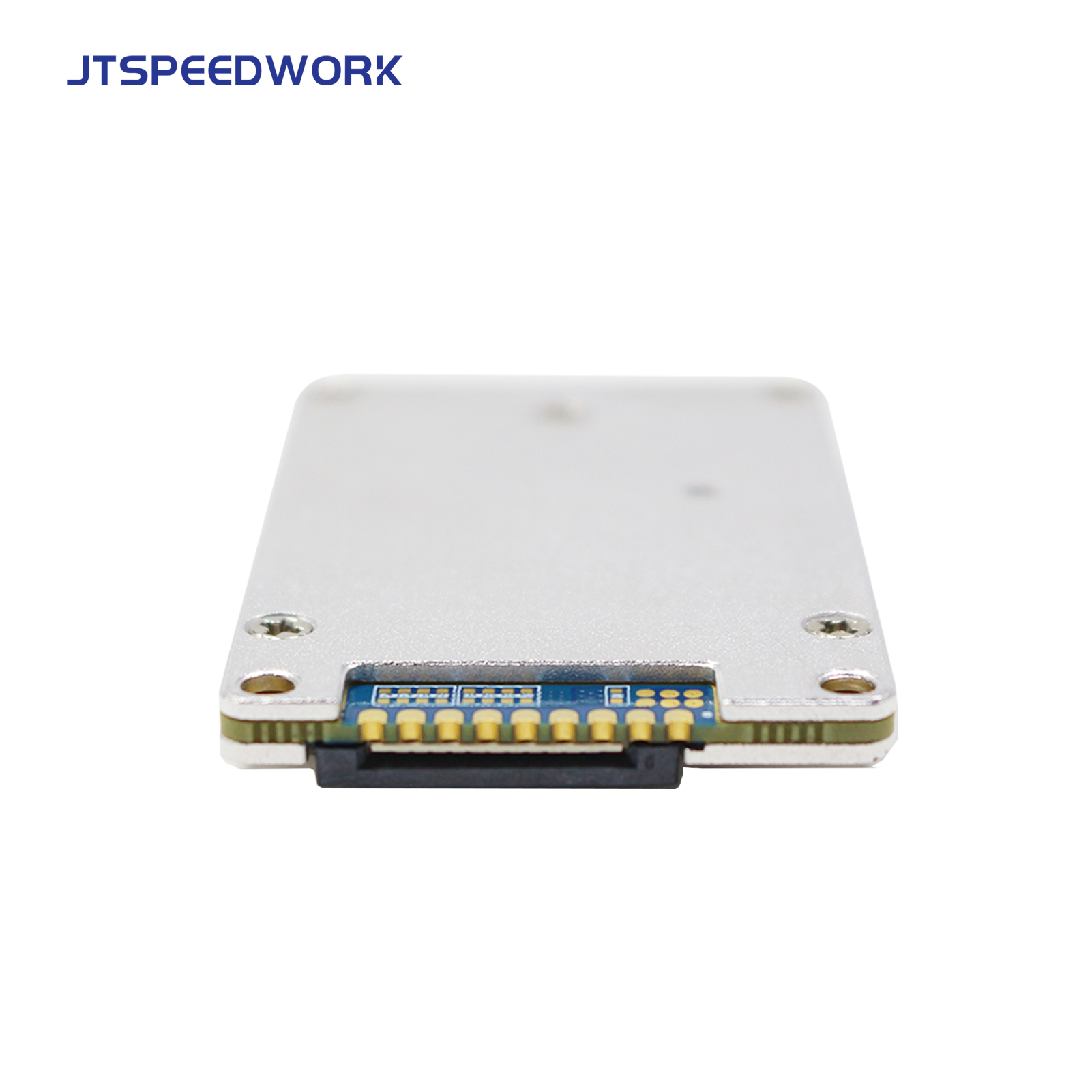

JTSPEEDWORK JT-M6100 UHF RFID 1-port Module is built with Impinj E710 RF chip, complying with ISO18000-6C protocol and working at 860-960MHz. It has 0~33dBm adjustable RF power, 1 MMCX port, and over 1000 tags/s reading speed with 7m reading range.
Item No :
JT-M6100Color :
SilverCommunication Interface :
Uart TTLProtocol :
ISO18000-6CWorking frequency :
860-960MHzRF chip :
Impinj E710
| Item No. | JT-M6100 | |||
| RFID parameters | Antenna Ports | |||
| Air Protocol | 1 MMCX connector | |||
| EPC global Gen2(ISO18000-6C) | ||||
| RF Chip | Power Supply | |||
| Impinj E710 | Input Voltage | DC 3.6-5.25V | ||
| Working frequency | Power Consumption | 6.75W (peak), 1.35A@5V, 33dBm;Standby 0.75W | ||
| 860-960MHz | ||||
| RF power | User Environment | |||
| 0~33dBm(adjustable) | Operating Temp. | -20° C ~75° C | ||
| RSSI/Temp. detect | Storage Temp. | -30° C ~80° C | ||
| Support | Humidity | 5-90% non-condensing (+25° C ) | ||
| Sensitivity | ||||
| -87dBm@10%BER | Reading Performance | |||
| Reading rate | ||||
| Communication | >1000 tags/s | |||
| UART serial port;Baud rate 9600~921600bps@default 115200bps | Reading distance | |||
| GPIO | >7m (using 2.5dBi ceramic antenna) | |||
| 2 inputs and 2 outputs (3.3V TTL) | ||||
| Connector | Physical parameters | |||
| 12pin connector Uart3.3V (TTL) | Module size | 55.88(L) x 35.56(W)x 6(H)mm | ||
| Weight | 21g | |||
| Shell material | Aluminum alloy | |||
