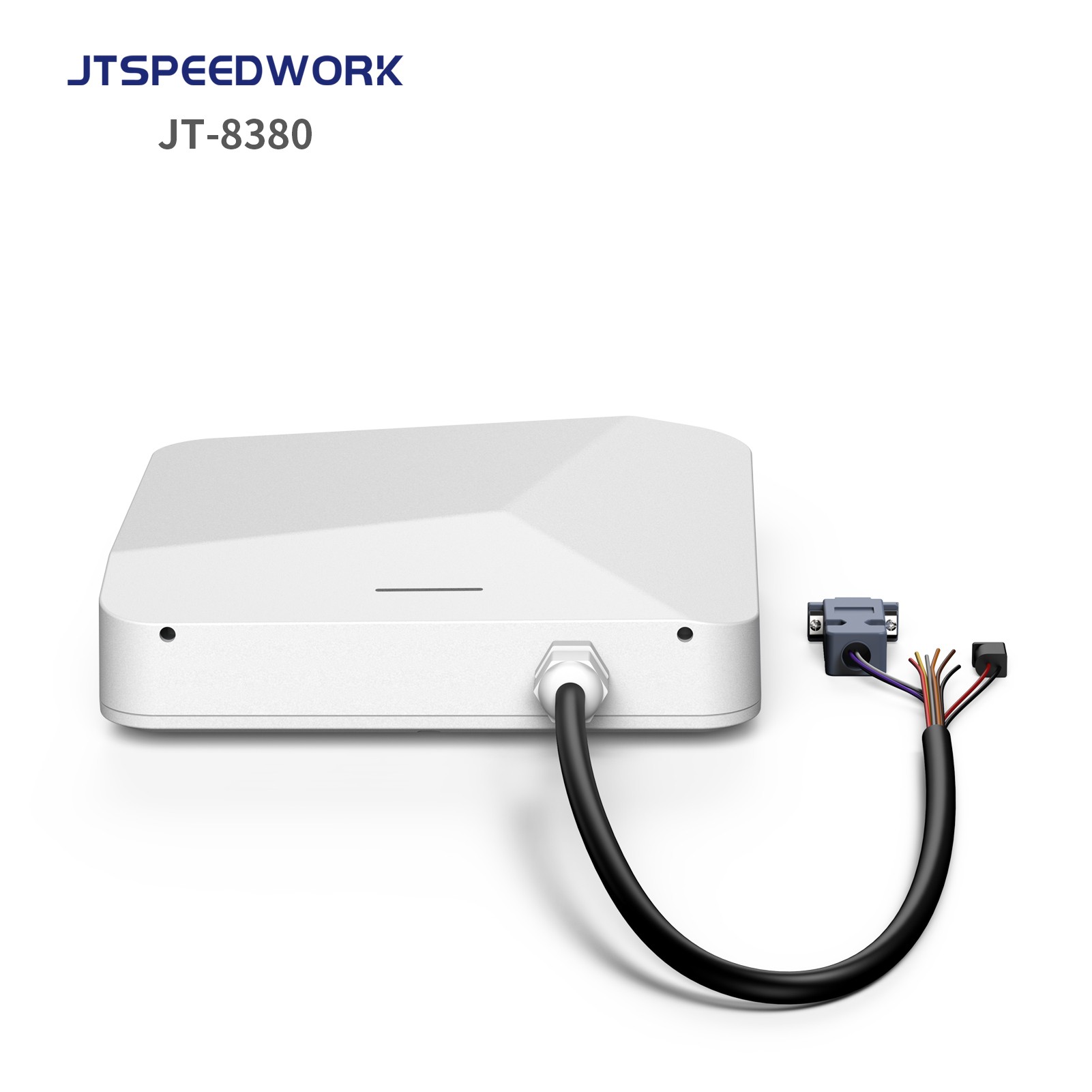

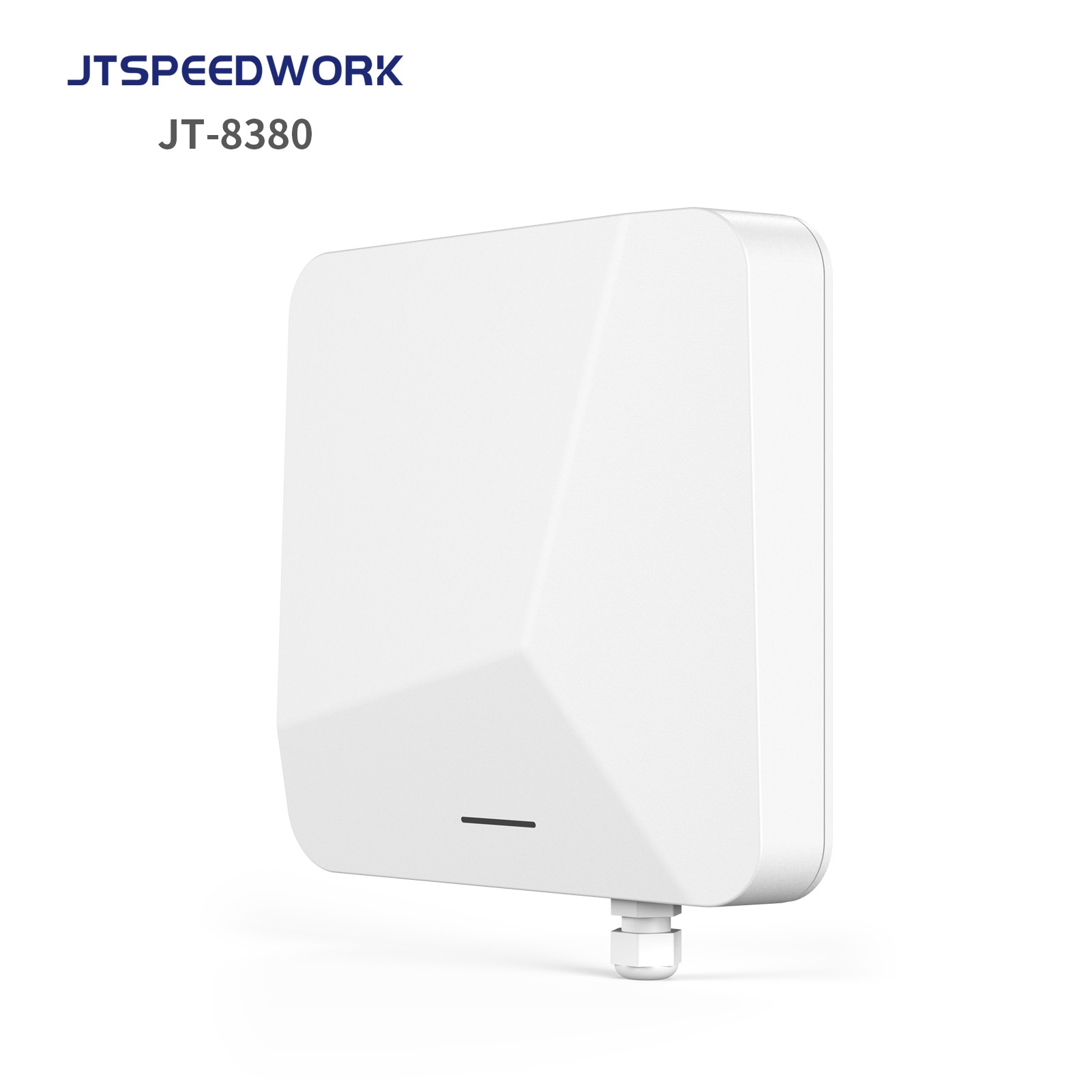

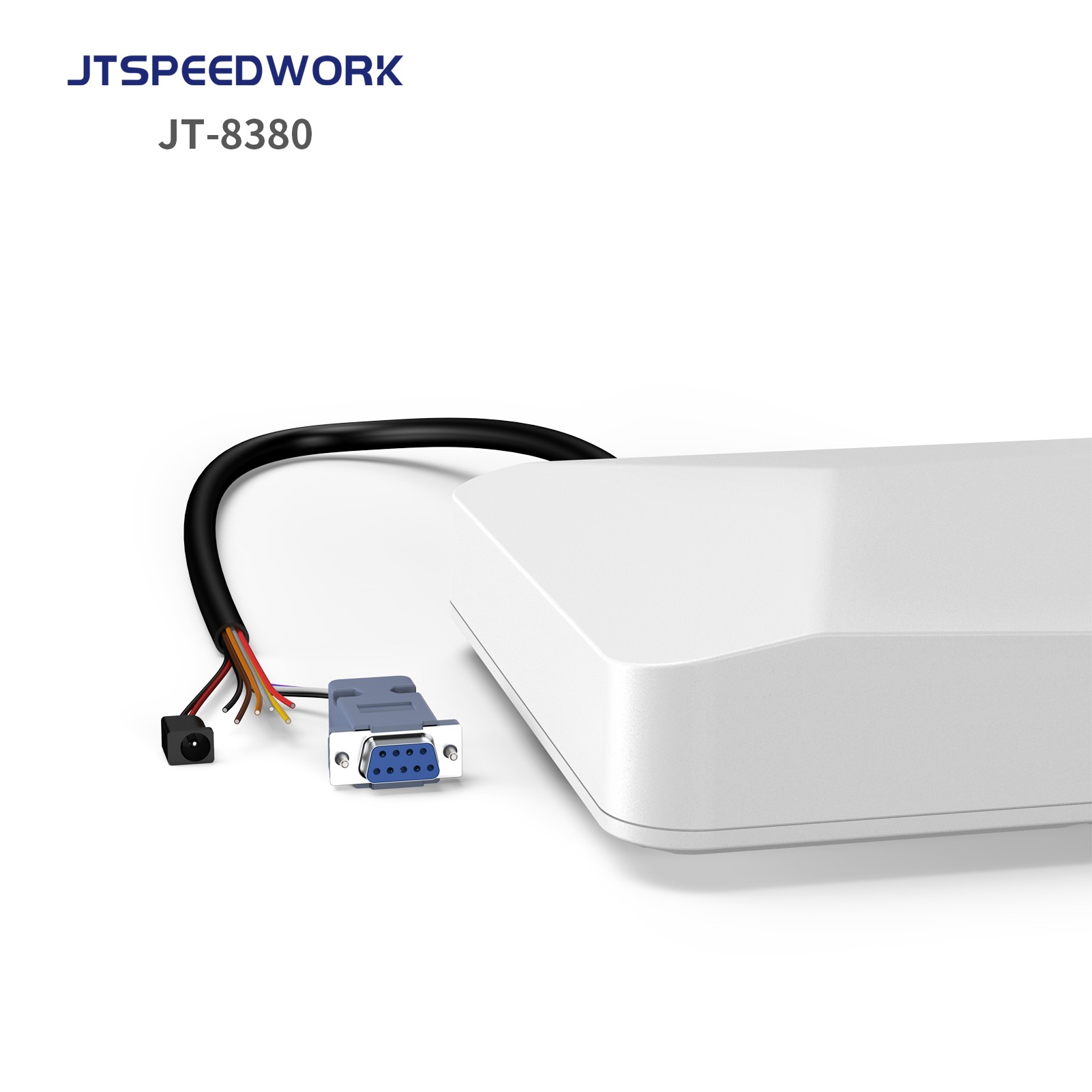

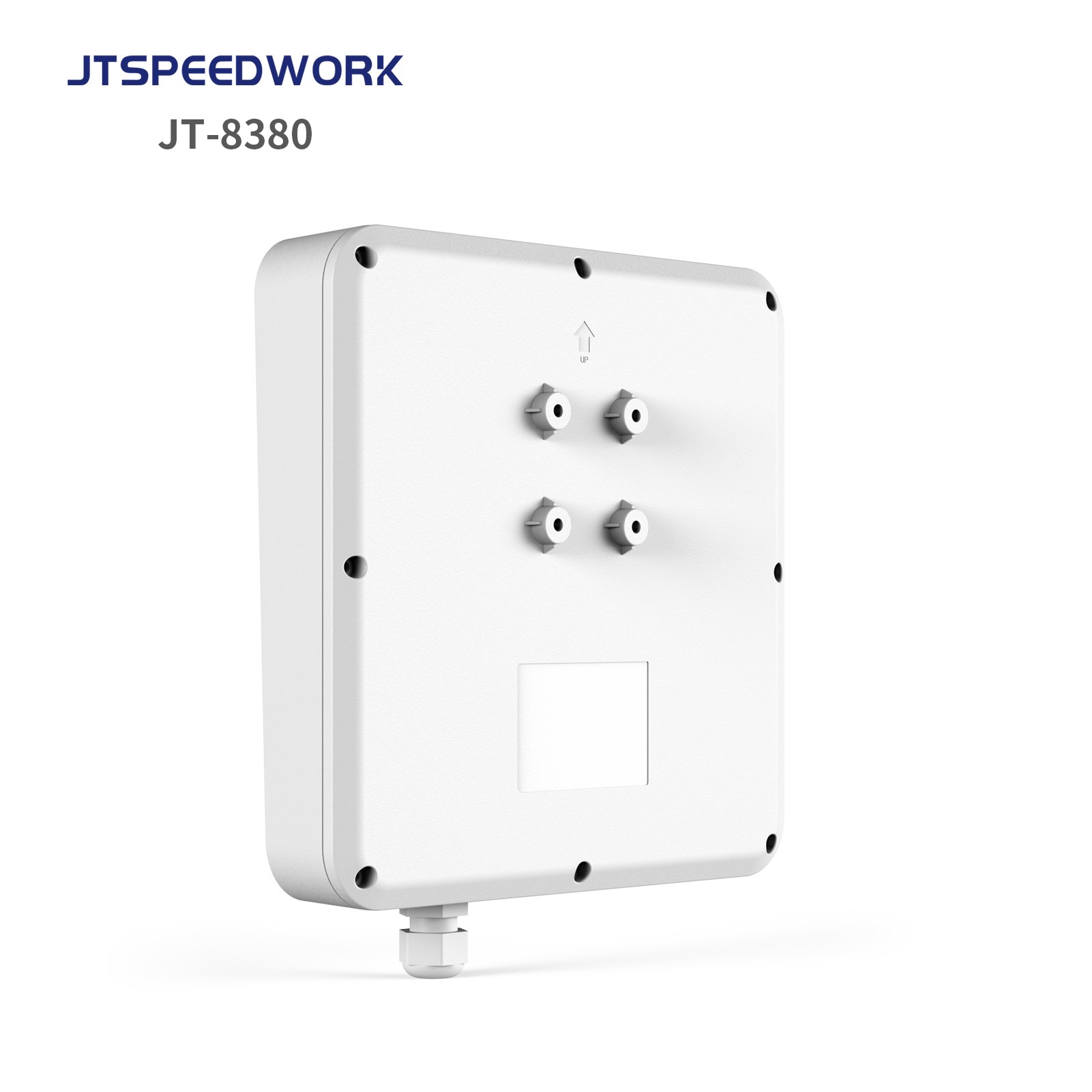

JT-8380 0-6m UHF RFID 902-928MHz Middle Range Integrated Reader
Item No :
JT-8380Color :
WhiteAntenna gain :
8dBi CircularCommunication Interface :
RS232,RS485,Wiegand(standard),TCP/IP(optional)Protocol :
ISO18000-6CWorking frequency :
902-928MHz
| Item No. | JT-8380 | |||
| Physical Parameters | Antenna | |||

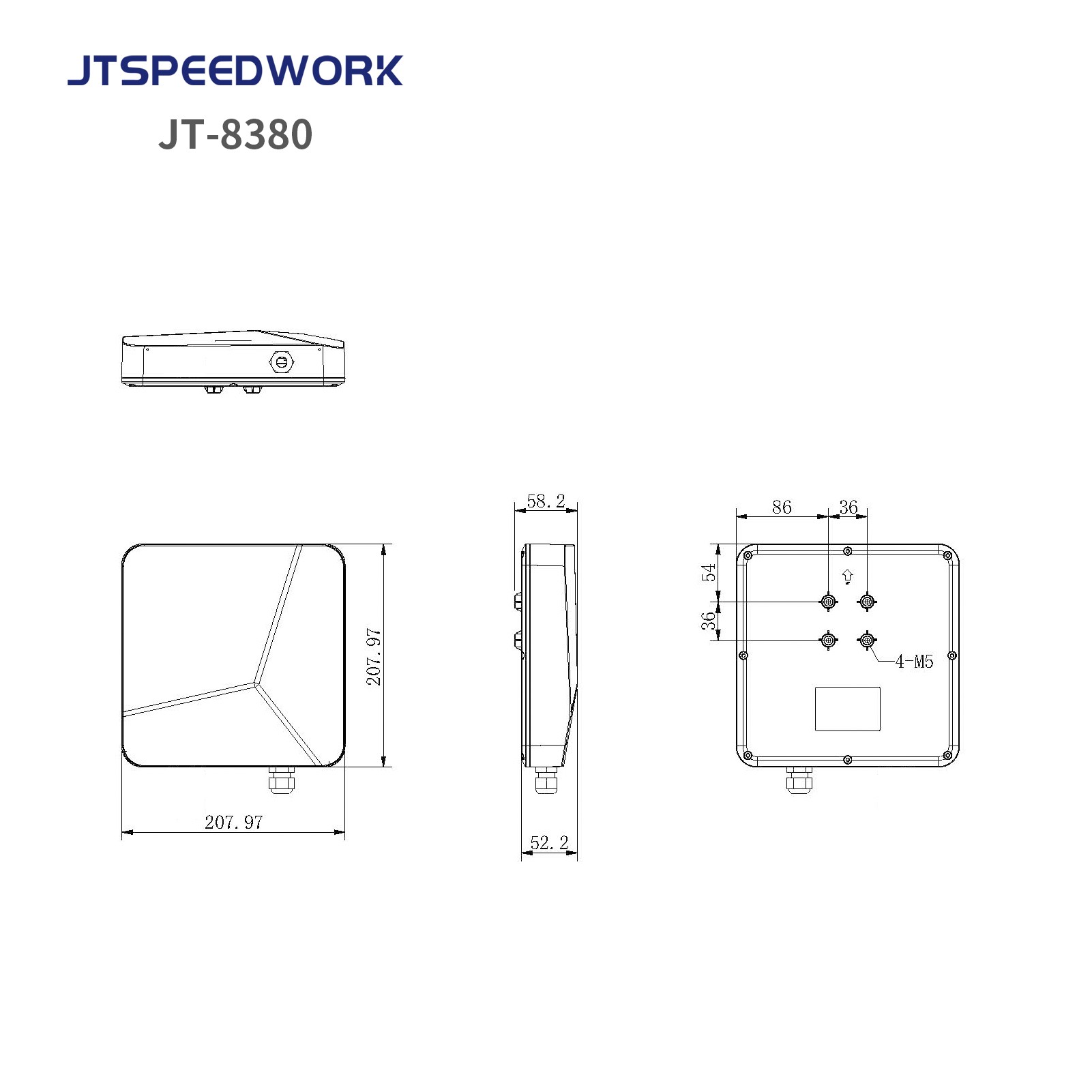

| Dimensions | 208(L)*208(W)*46(H)mm | 8dBi circularly polarized antenna (built-in) | ||
| Net weight | 660g | |||
| Material | ABS & aluminum alloy | Power Supply | ||
| Input Voltage | DC 12-24V/3A | |||
| RFID Parameters | Peak current | 500mA | ||
| Air Protocol | ||||
| EPC global Gen2(ISO18000-6C) | User Environment | |||
| Working frequency | Operating Temp. | -40 ℃ to 75 ℃ | ||
| US:902-928 MHz | Storage Temp. | -40 ℃ to 85 ℃ | ||
| RF power | Humidity | 5-90% non-condensing (+25° C ) | ||
| 0~30 dBm (adjustable) | ||||
| Work mode | Reading Performance | |||
| Master-slave, timing,trigger mode | Reading distance | |||
| I/O | Up to 6m(relate to tag and environment) | |||
| 1 trigger input or 2 relay outputs (customized) | Model Type | |||
| Notification | JT-8380A | RS232, RS485, Wiegand | ||
| LED indicator,buzzer | JT-8380B | RS232, TCP/IP, Wiegand | ||
| SDK | ||||
| C# , Java , C++ | ||||
