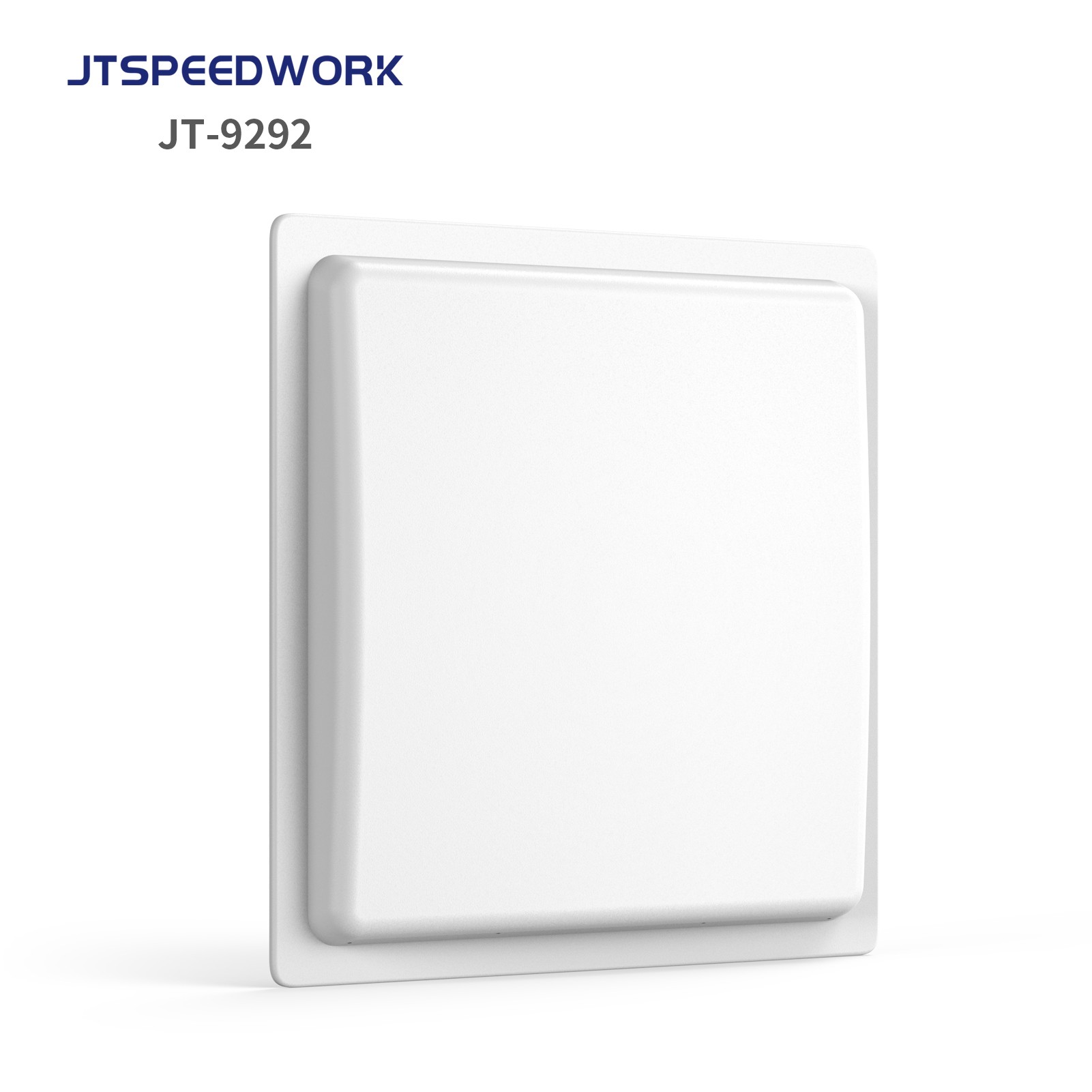

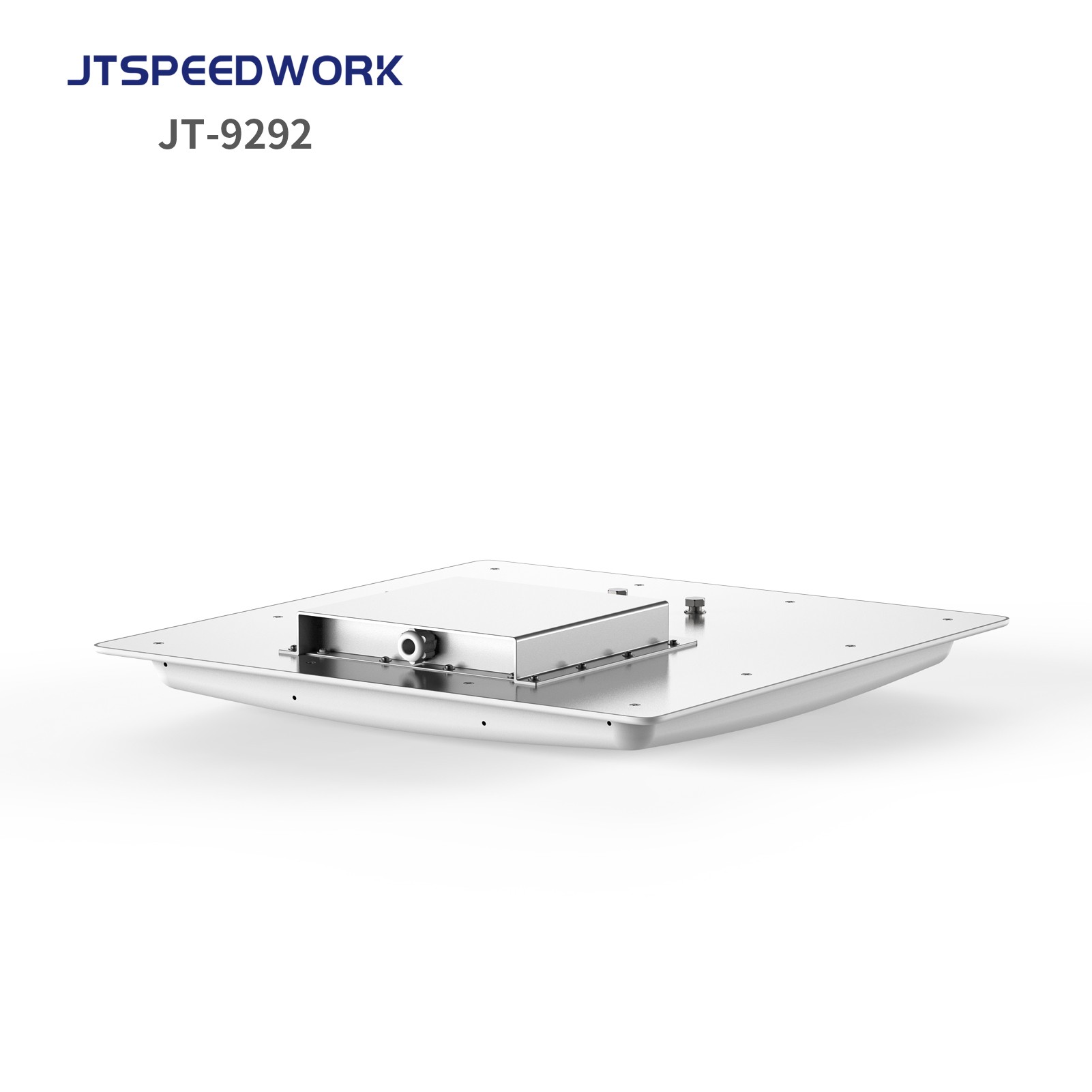

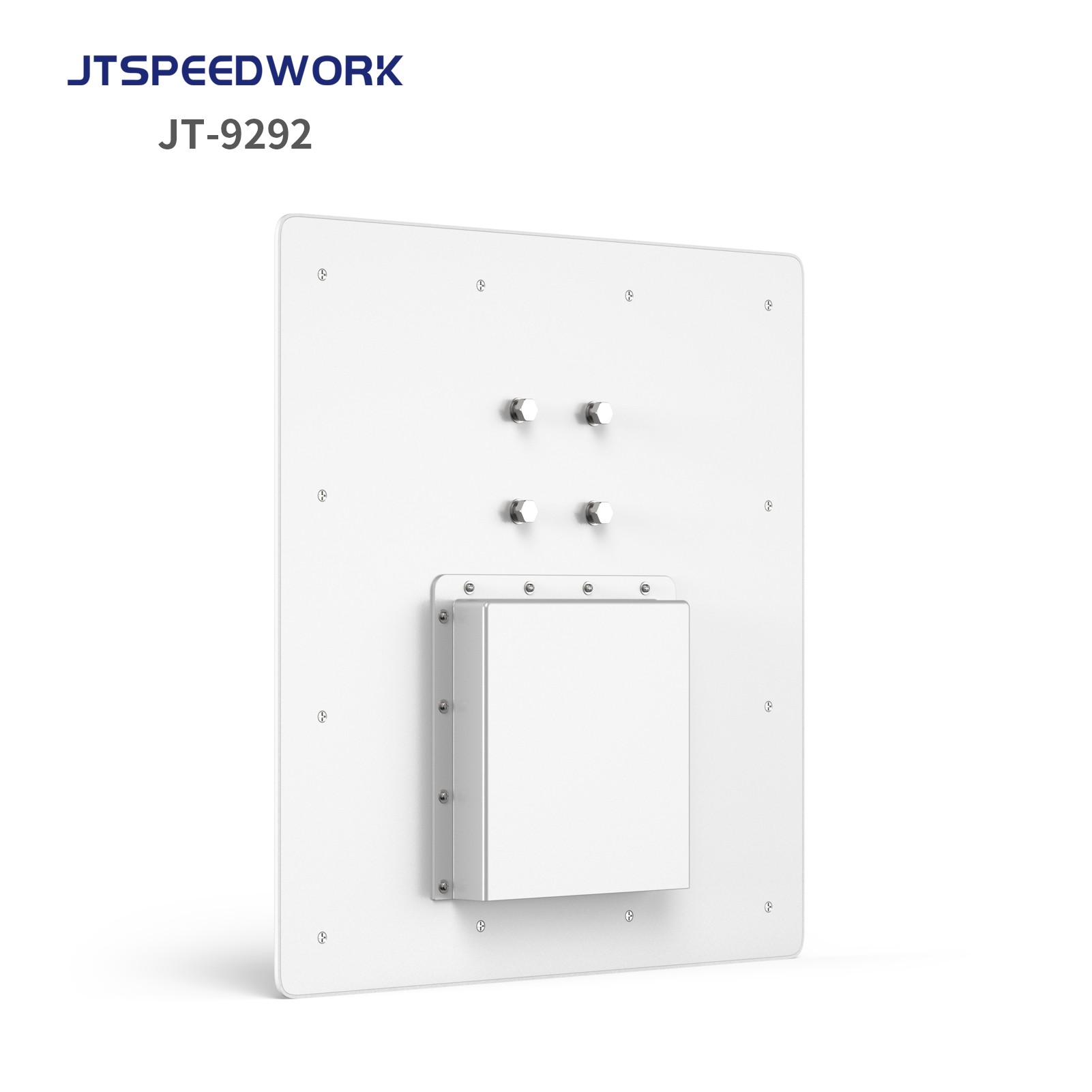

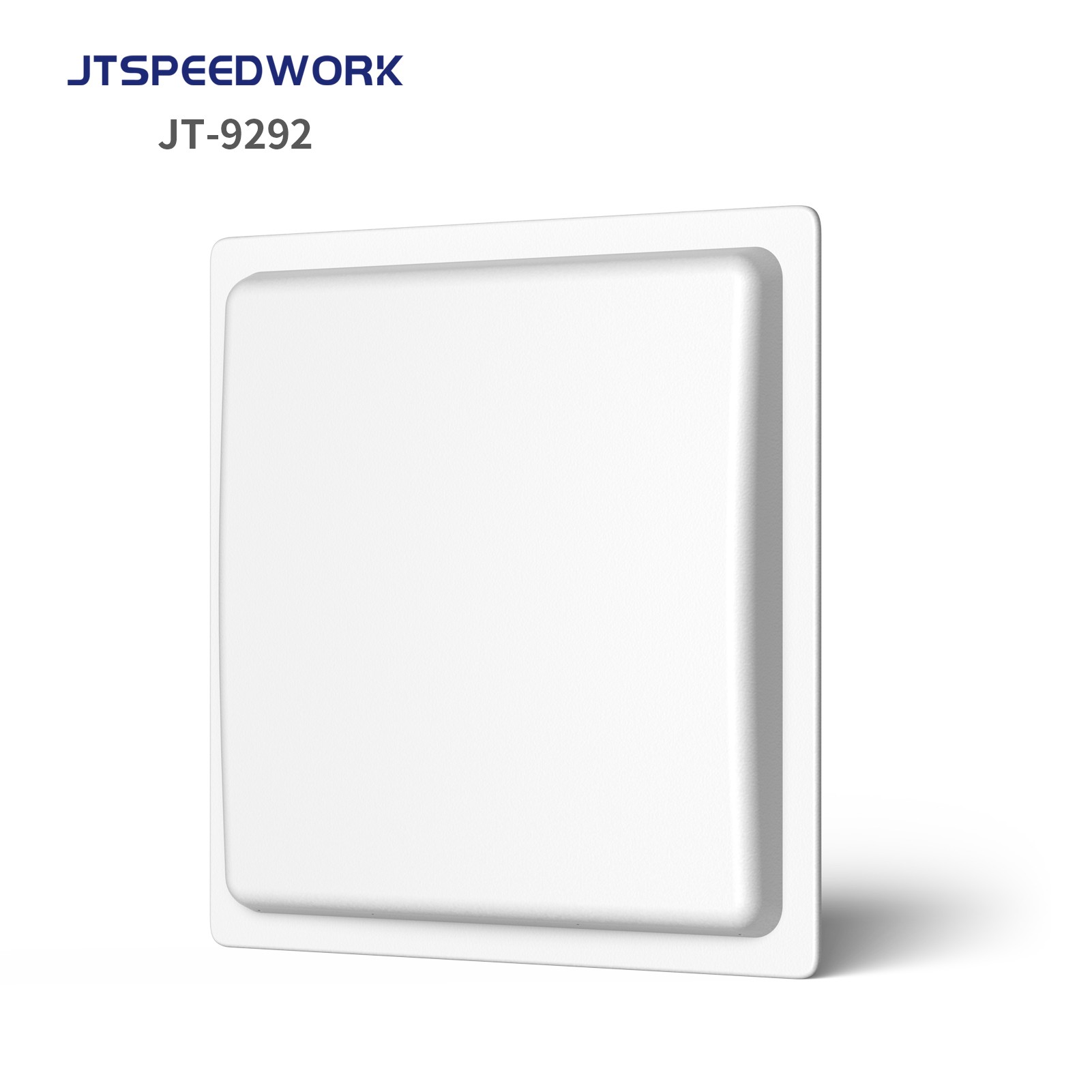

JT-9292 0-30m Long Range UHF RFID Integrated Reader with Multi-tags Reading 860-960MHz
The JT-9292 is a high-performance long-range UHF RFID integrated reader by JTSPEEDWORK, featuring a 12dBi linear polarization antenna and optional Impinj E710/TM200 chip. It supports ISO18000-6C protocol and 860-960MHz customizable frequency, with adjustable RF power up to 33dBm.
Item No :
JT-9292Color :
WhiteAntenna gain :
12dBi LinearCommunication Interface :
RS232,TCP/IP(standard),RS485,WiFi,4G(optional)Protocol :
ISO18000-6C,EPC C1 Gen2Working frequency :
865-868MHz(EU) | 902-928MHz(US)RF chip :
TM200(standard) | Impinj E710(optional)
| Item No. | JT-9292 | |||
| Physical parameters | Antenna | |||
| Dimensions | 450(L)*450(W)*50(H)mm | 12dBi linear polarized antenna (built-in) | ||
| Net weight | 2.15kg | |||
| Material | ABS & aluminum alloy | Power Supply | ||
| Operate voltage | 12-36V | |||
| RFID parameters | Operate current | 0.65A@30dBm,25° C | ||
| Air Protocol | Power adapter | DC 12V/3A | ||
| EPC global Gen2(ISO18000-6C) | ||||
| Working frequency | User Environment | |||
| 865-868 / 920-925 / 902-928 MHz ( custom-design for frequency band ) | Operating Temp. | -40 ℃ to 75 ℃ | ||
| RFID chip | Storage Temp. | -45 ℃ to 80℃ | ||
| TM200(standard) | Impinj E710(optional) | Humidity | 5-90% non-condensing (+25° C ) | ||
| RF power | ||||
| 13-33dBm(adjustable) | 0-33dBm(adjustable) | Reading Performance | |||
| Reading rate | Reading distance | |||
| >700 times/sec | >900 times/sec | Up to 30m(relate to tag and environment) | |||
| RSSI | Model Type | |||
| Support | JT-9292B | RS232,TCP/IP | ||
| Work mode | JT-9292W | RS232,TCP/IP,WiFi | ||
| Master-slave, timing,trigger mode | JT-9292G | RS232,TCP/IP,4GPRS | ||
| Consumption | ||||
| Average power consumption<9W | ||||
| Notification | SDK | |||
| LED indicator,buzzer | C# , Java , C++ | |||
