JT-923 or JT-924 ISO18000-6C UHF RFID Gate Reader With Android Screen For Access Control Management
JT-923 or JT-924 UHF RFID Gate Reader by JTSPEEDWORK, built for access control with ISO18000-6C protocol & Android 9.0 15.6-inch touch screen. Powered by TM200 or Impinj E710 chip, 4×8dBi antennas enable 5m max read distance, 700+ reads/sec & multi-tag reading.Global frequency, 2 infrared traps, multi-interface, RSSI support, SDK for secondary development.
Item No :
JT-923 | JT-924Color :
WhiteAntenna gain :
8dbiCommunication Interface :
RS232, TCP/IP (standard), WiFi, 4G (optional)Protocol :
ISO18000-6CWorking frequency :
EU:865-868MHz | US:902-928 MHzRF chip :
TM200(standard) | Impinj E710(optional)| Item No. | JT-923(with screen) | JT-924(without sreen) | |||
| Physical parameters | Antenna | |||

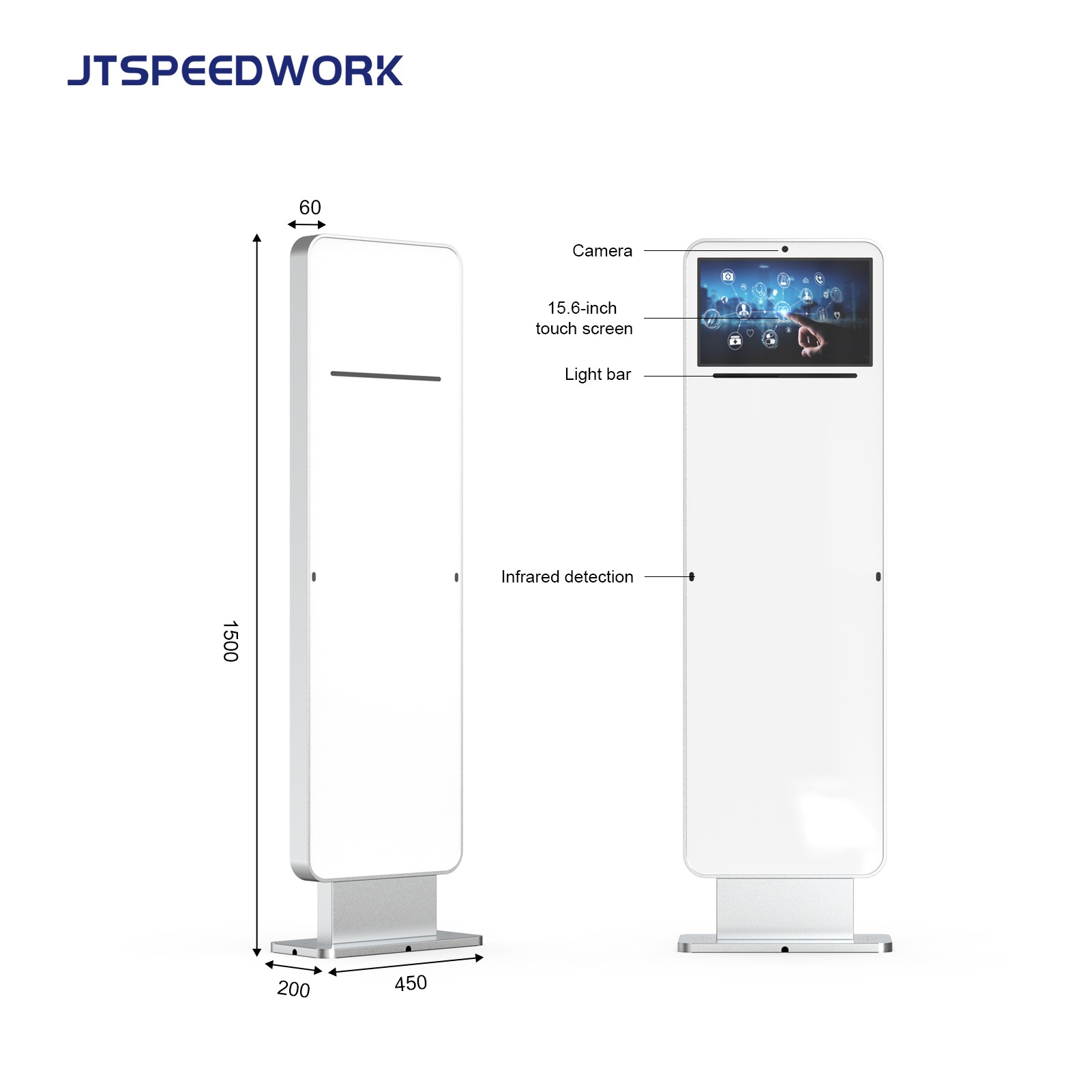

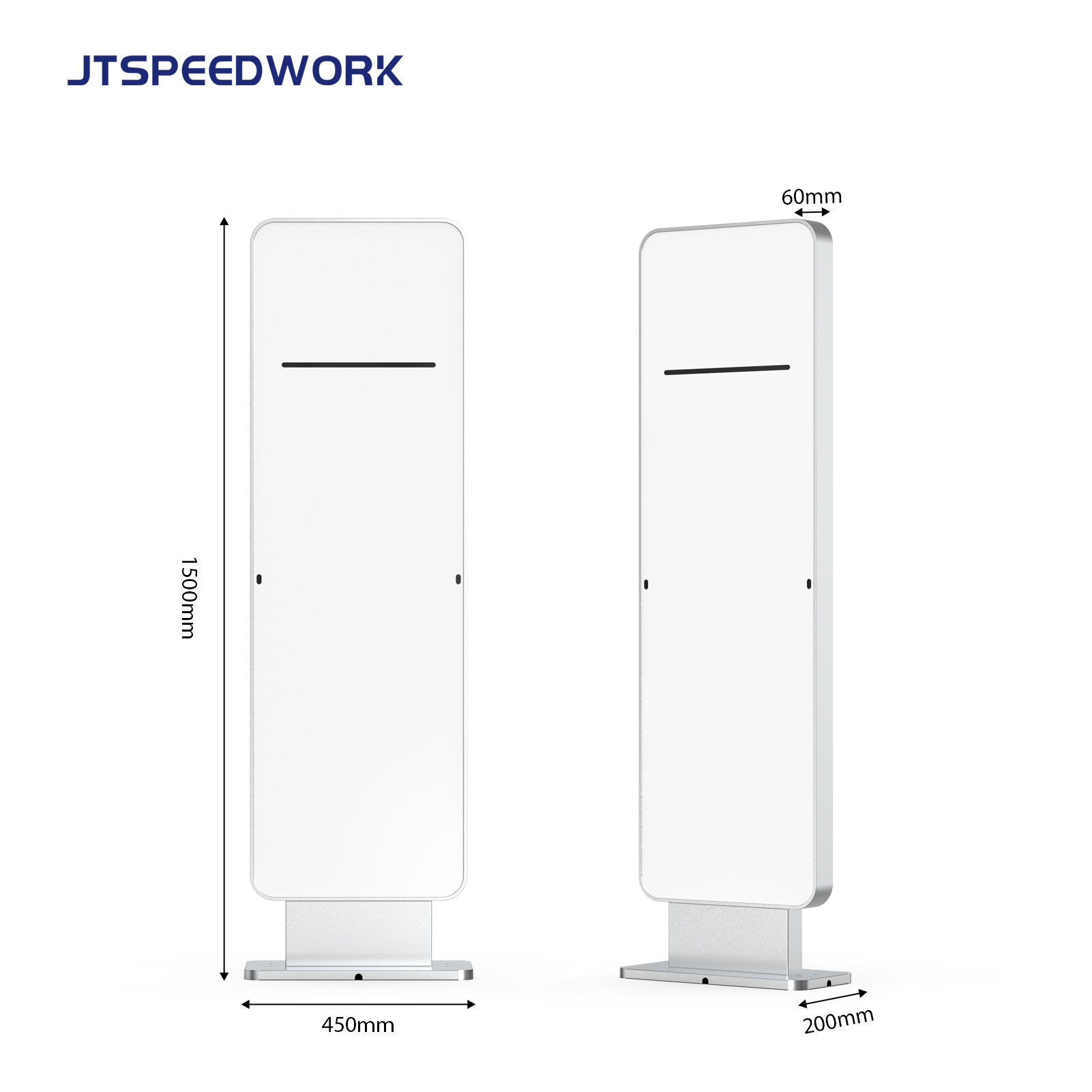

| Dimensions | 1530(H)* 430(L) *60(W) mm;base:450(L) *200(W) mm | 4pcs 8dBi circularly /linear polarized antenna (built-in) | ||
| Net weight | Approx 15kg for a single door | |||
| Material | Acrylic | Power Supply | ||
| Power supply | DC 9-36V /3A | |||
| RFID parameters | Consumption | 9W(@Maximum output power 32dBm) | ||
| Air Protocol | ||||
| EPC global Gen2(ISO18000-6C) | User Environment | |||
| Working frequency | Operating Temp. | -20 ℃ to 70 ℃ | ||
| EU:865-868MHz | US:902-928 MHz | Storage Temp. | -30 ℃ to 80 ℃ | ||
| RF power | Humidity | 5-90% non-condensing (+25° C ) | ||
| 13~33dBm | 0-33dBm(adjustable) | ||||
| RF module | Reading Performance | |||
| TM200(standard) | Impinj E710(optional) | Reading distance | |||
| Reading rate | Up to 5m(relate to tag and environment) | |||
| >700 times/sec | >900 times/sec | ||||
| RSSI | Communication Interface | |||
| Support | RS232, TCP/IP (standard), WiFi, 4G (optional) | |||
| Trigger mode | ||||
| Two infrared trigger inputs | SDK | |||
| Notification | Demo&C++,C#,JAVA,Android SDK | |||
| Buzzer(standard) or flashing light (optional) | ||||
| Android OS(only JT-923 support) | ||||
| Android 9.0 | ||||
| Screen(only JT-923 support) | ||||
| 15.6-inch touch screen (one main door) | ||||
