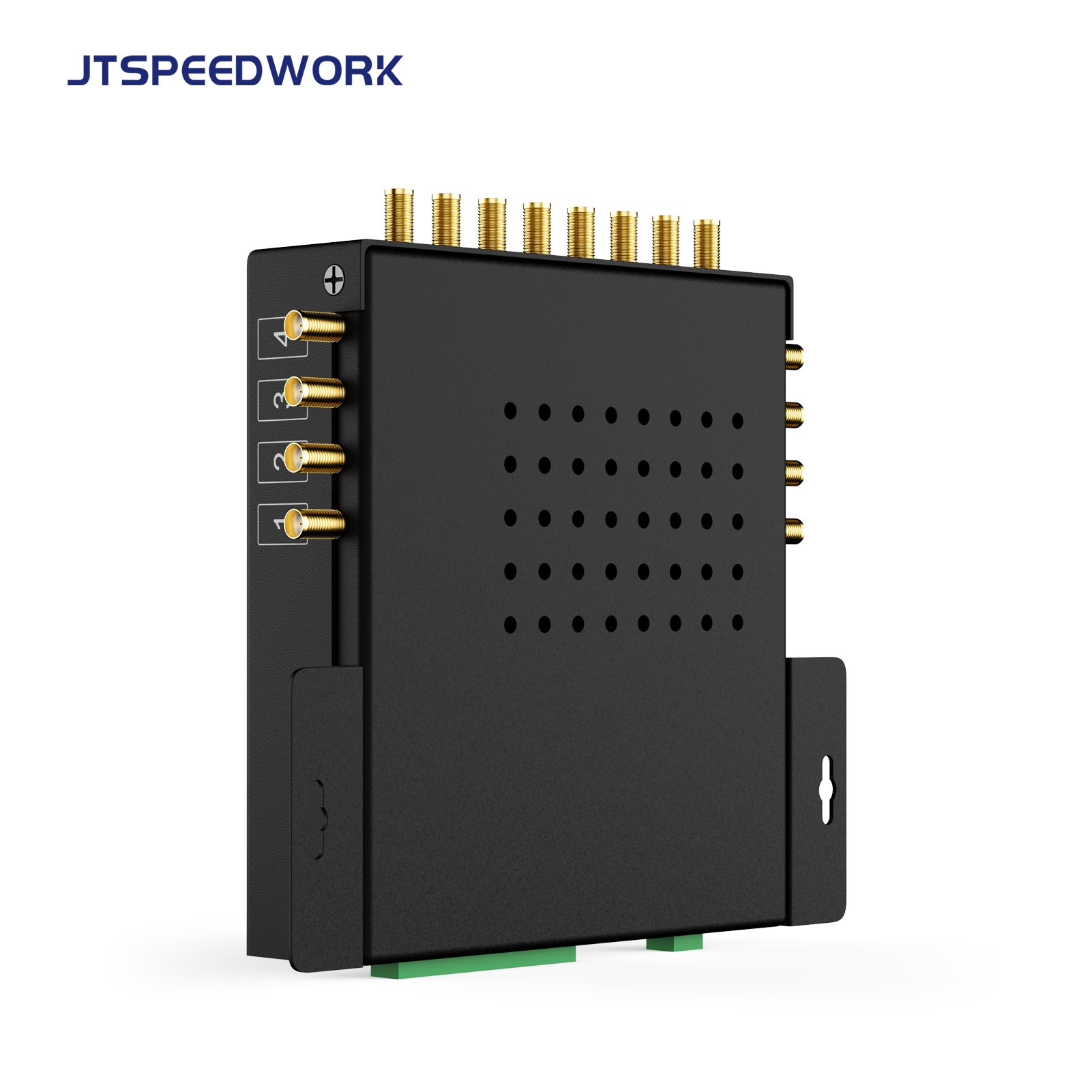

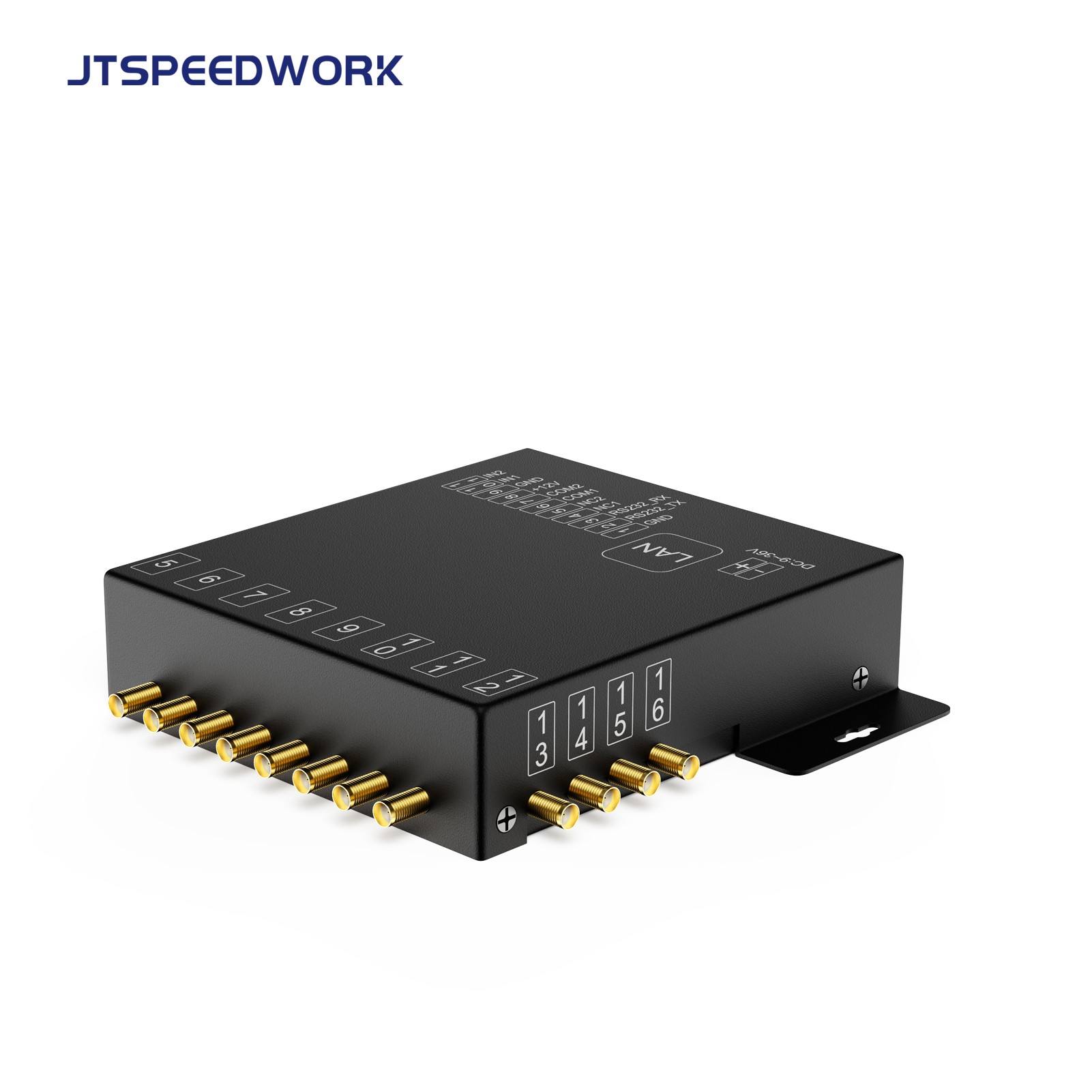

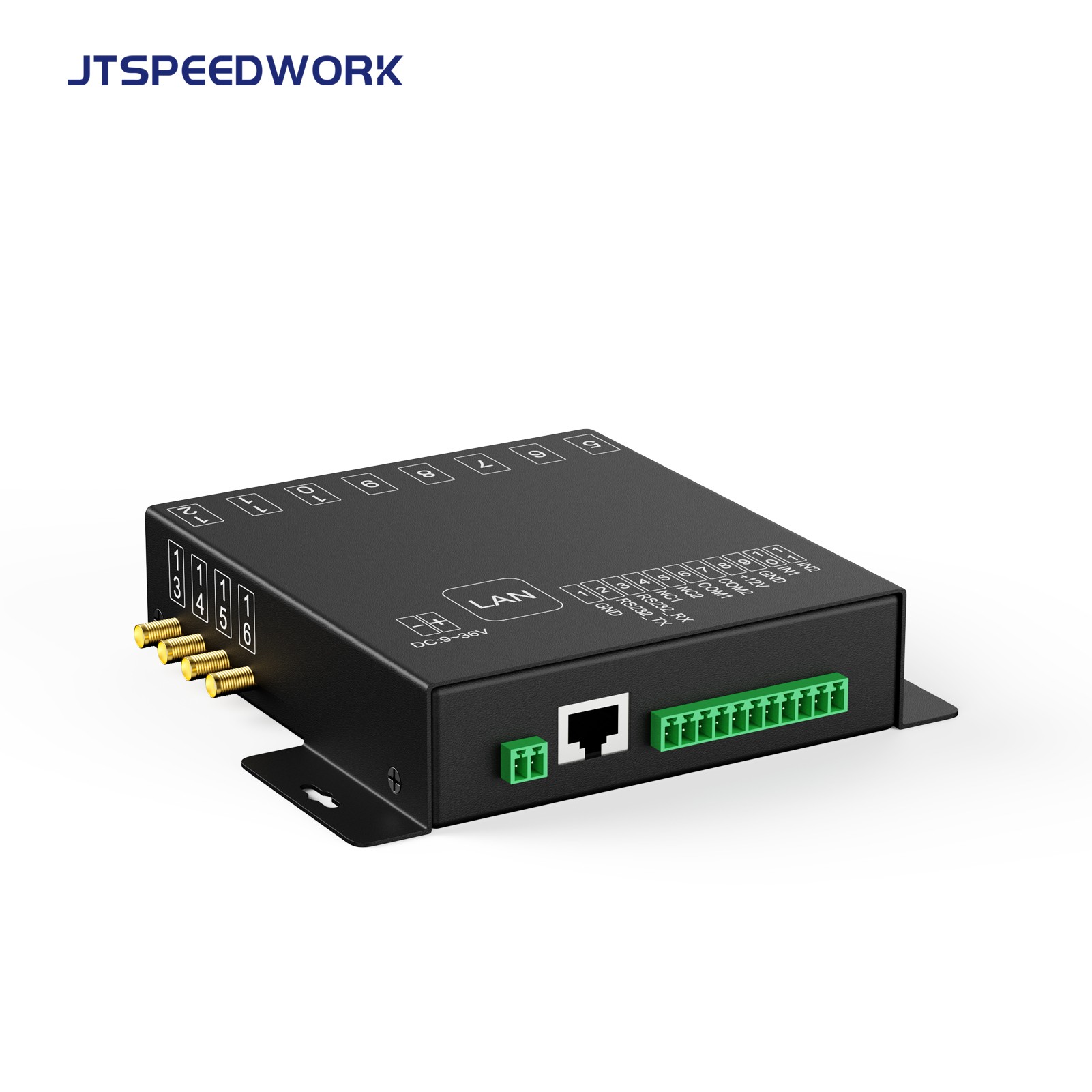

JT-932-8/16 8/16-ports UHF RFID Fixed Reader 860-960MHz for Warehouse Management
The JT-932-8/16 UHF RFID Reader is designed to increase inventory visibility, efficiency and business profitability. Supporting a global frequency range of 860MHz - 960MHz, the JT- 916 is capable of reading and writing all tags that conform to the EPC Global Gen2 and ISO 18000-6C standards.
Item No :
JT-932-8/16Color :
BlackCommunication Interface :
RS232,TCP/IPProtocol :
ISO18000-6CWorking frequency :
860-960MHzRF chip :
TM200| Item No. | JT-932-8/16 | |||
| Physical parameters | Antenna | |||

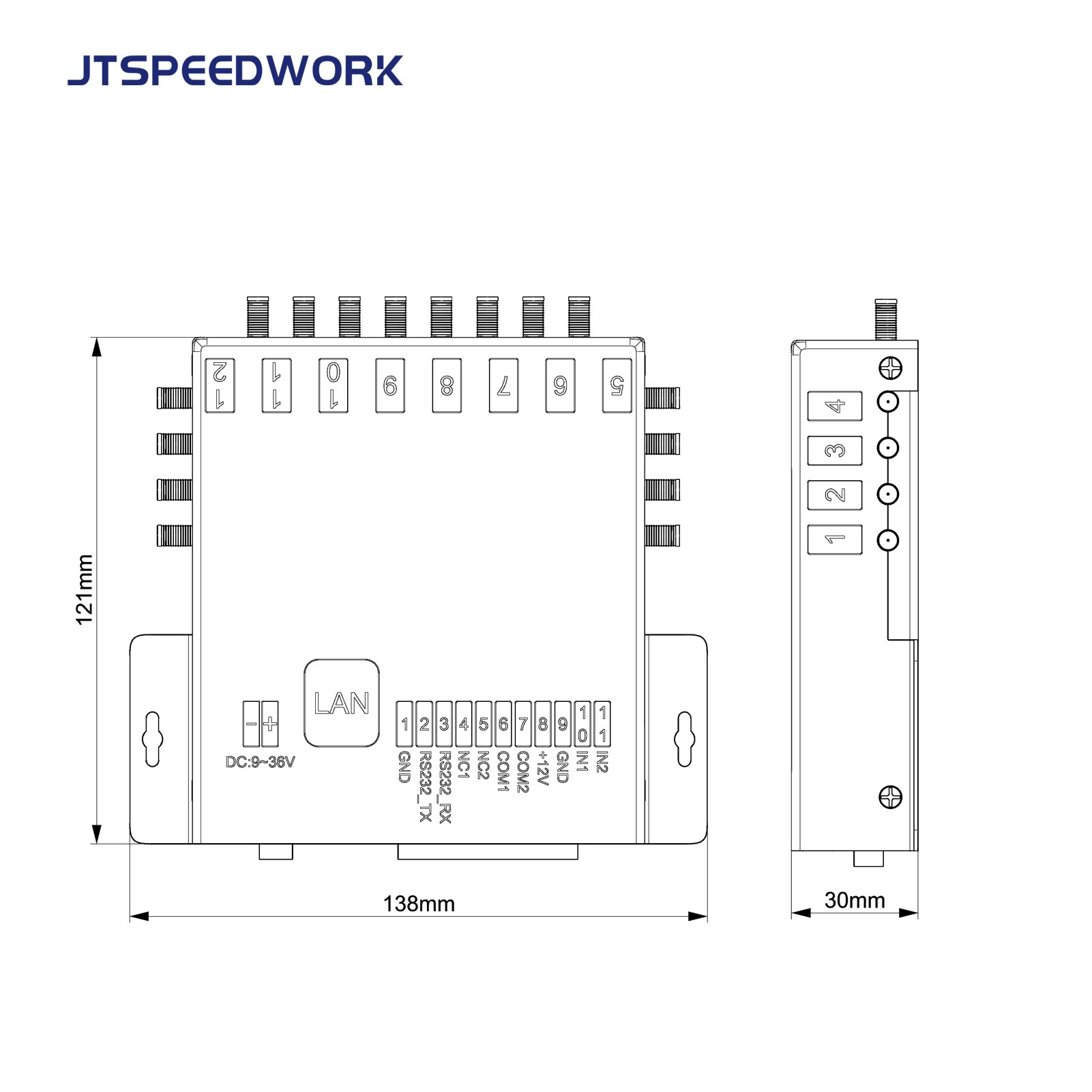

| Dimensions | 122(L)*136(W)*30(H)mm | 16 SMA female antenna connector | ||
| Net weight | 0.5KG | |||
| Material | Aluminum alloy | Power Supply | ||
| Operate voltage | DC 9-36V/2A | |||
| RFID parameters | Consumption | 9W(@Maximum output power 32dBm) | ||
| Air Protocol | ||||
| EPC global Gen2(ISO18000-6C) | User Environment | |||
| Working frequency | Operating Temp. | -20 ℃ to 75 ℃ | ||
| 860-960 MHz ( custom-design for frequency band ) | Storage Temp. | -30 ℃ to 80℃ | ||
| RFID chip | Humidity | 5-90% non-condensing (+25° C ) | ||
| TM200 | ||||
| RF power | Model Type | |||
| 13-33dBm (adjustable) | JT-916 | RS232,TCP/IP | ||
| Reading rate | ||||
| >700 times/sec | SDK | |||
| RSSI | C# , Java , C++ | |||
| Support | ||||
| RS232 baud rate | ||||
| 115200 bps (default) | ||||
| RJ45 baud rate | ||||
| 230400 bps (default) | ||||

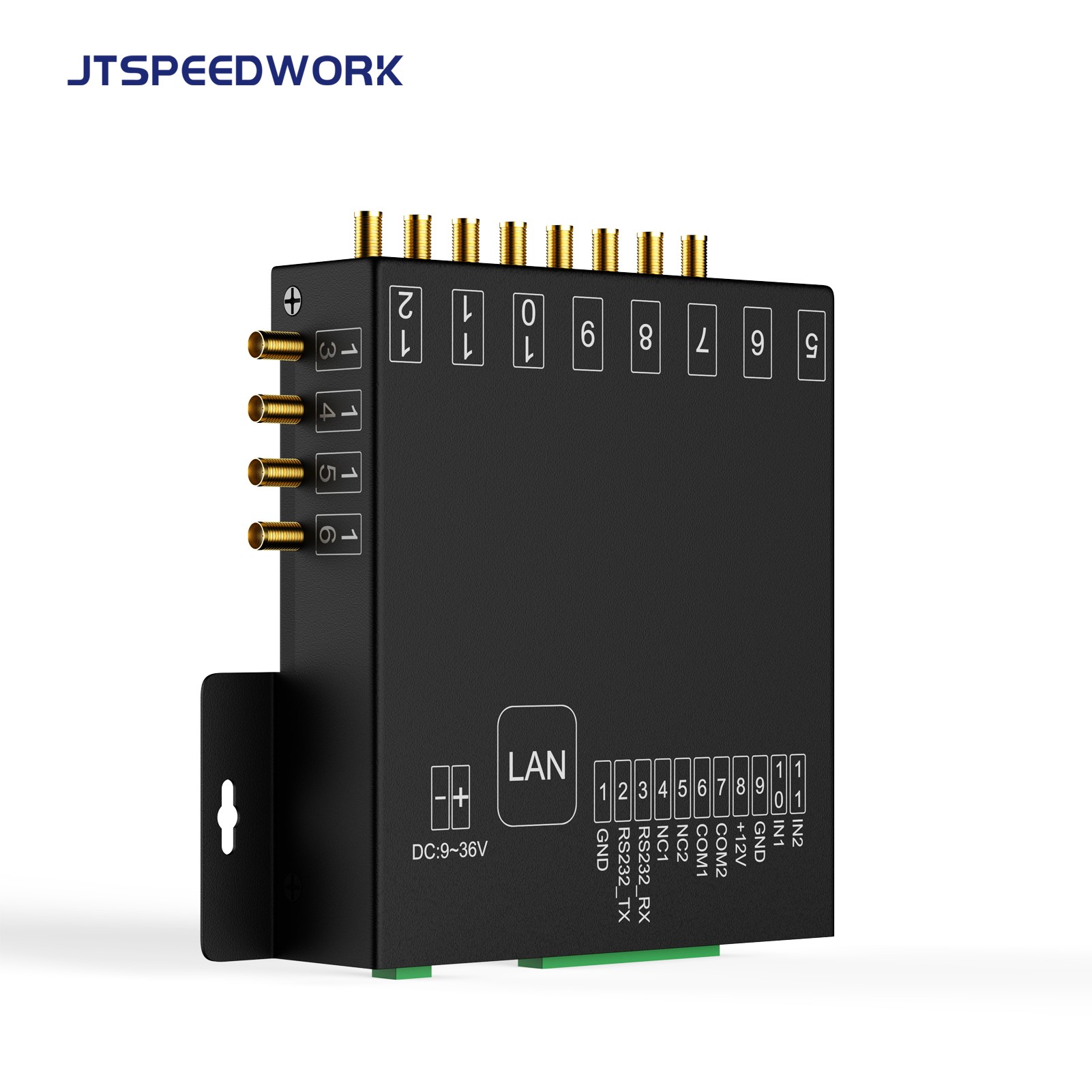

I/O Interface definition
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
