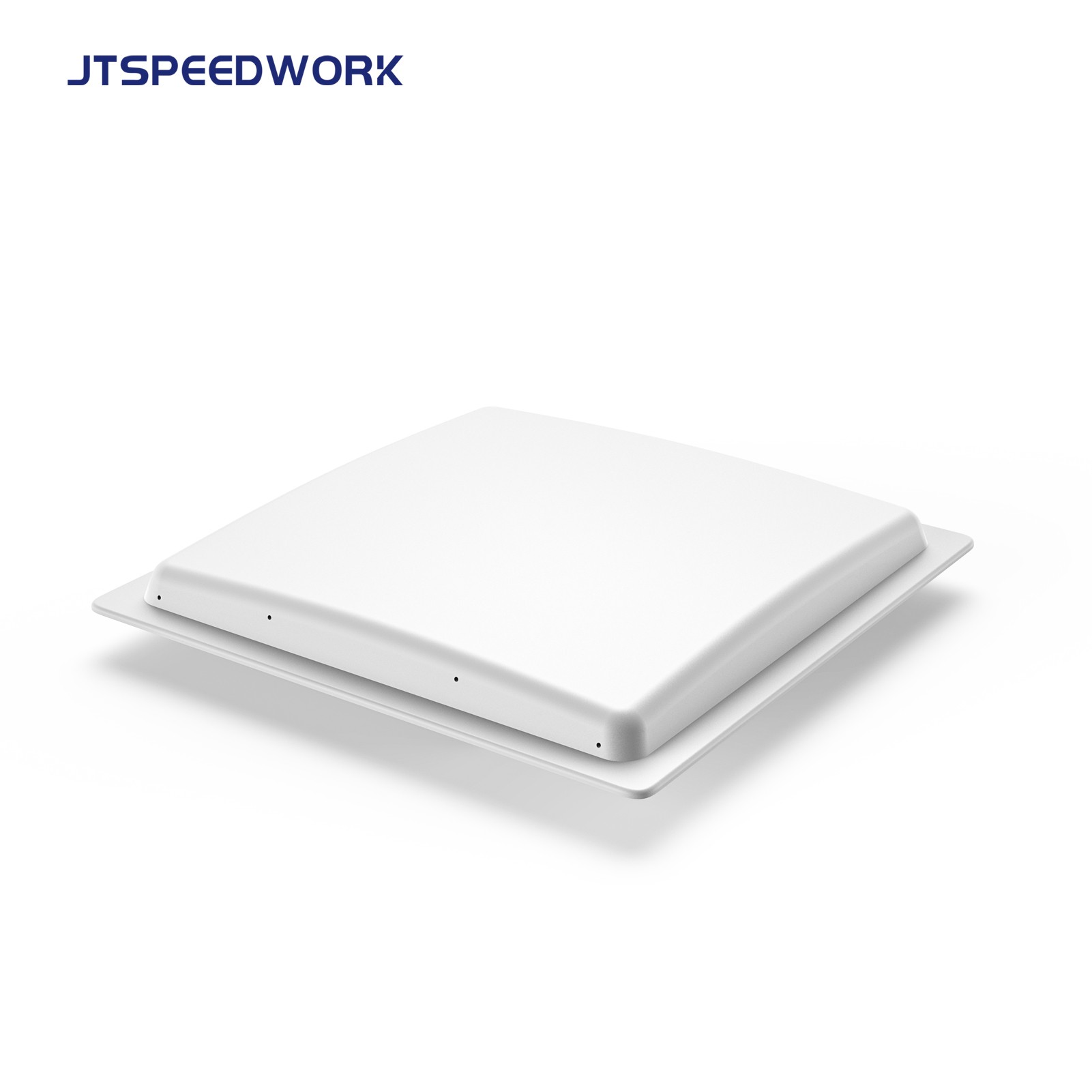

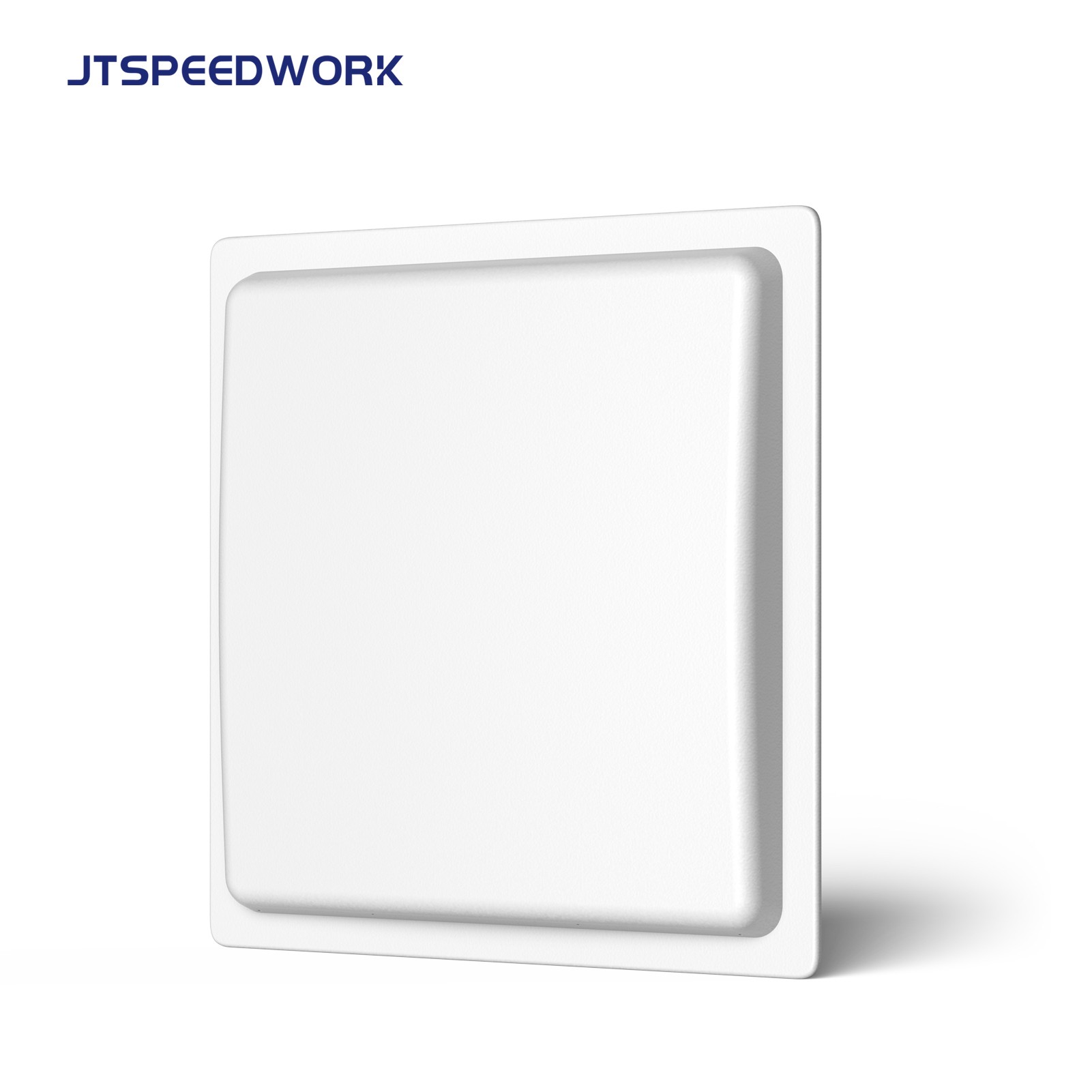

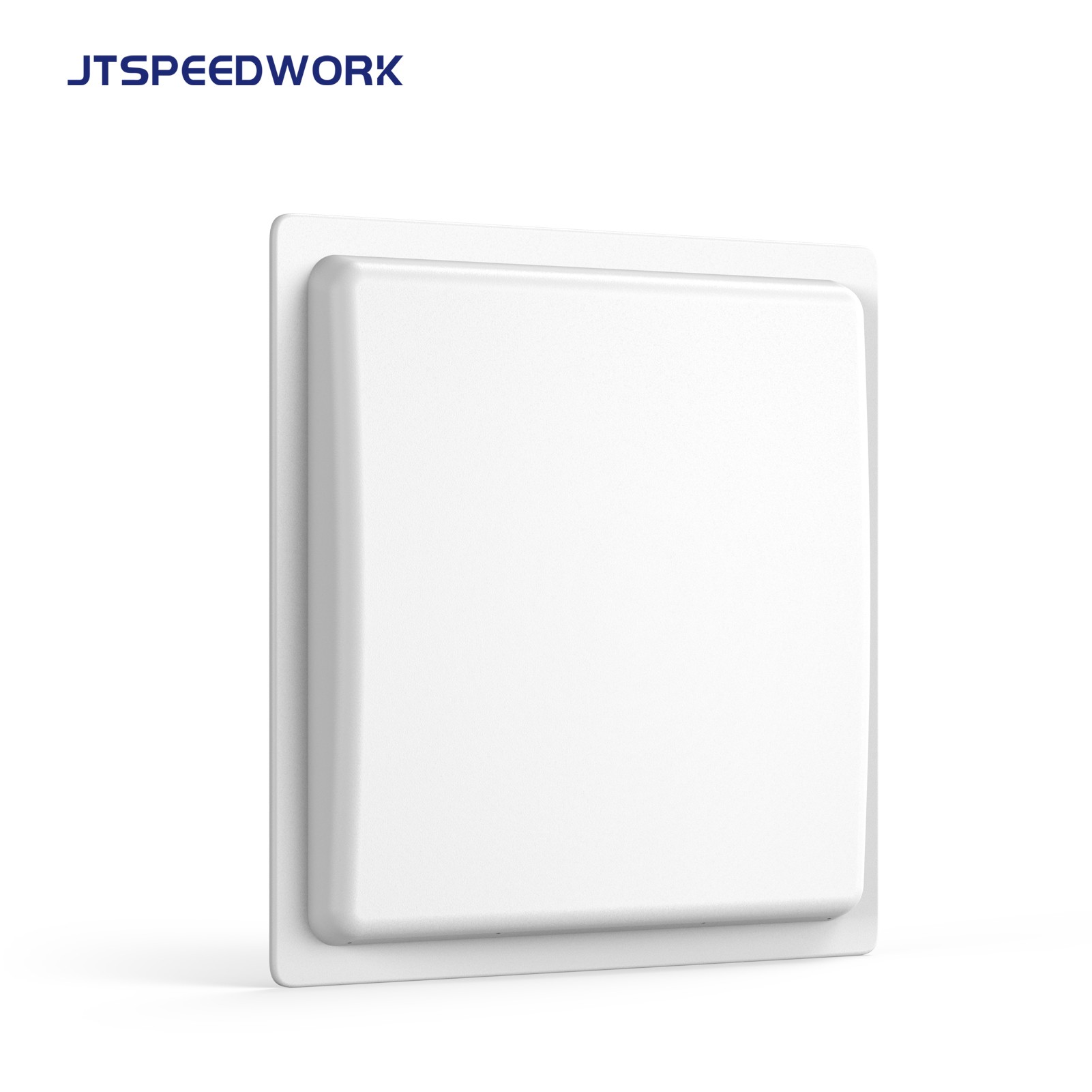

JT-T0450 12dBi UHF RFID Long Range Antenna 865-868/902-928MHz
JTSPEEDWORK JT-T0450 is a 12dBi high-gain UHF RFID antenna with ≤1.3 VSWR. It supports dual polarization, features narrow beam width, and excels in long-range asset & container management with strong environmental adaptability.
Item No :
JT-T0450Color :
WhiteAntenna gain :
12dBi circularWorking frequency :
US:902-928MHZ | EU:865-868MHz
| Item No. | JT-T0450 | |||
| Physical parameters | Antenna gain | |||

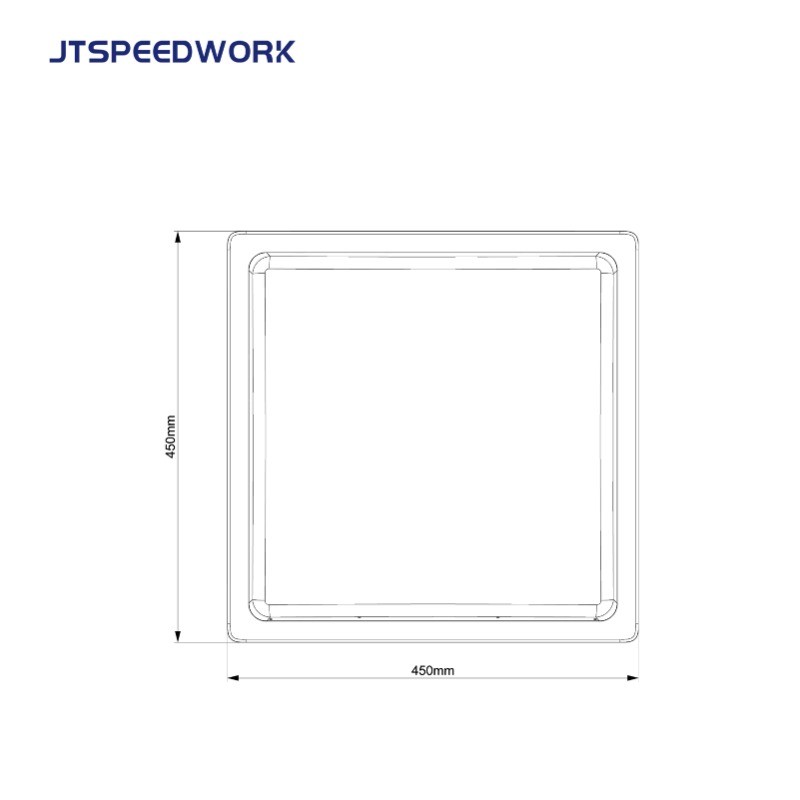

| Size | 450*450*40mm | 12dBi Circular | ||
| Net weight | 2.8kg | Frequency | ||
| Material | ABS | US:902-928MHZ | EU:865-868MHz | ||
| Color | White | Beam width | ||
| Connector | Hor: 45° Ver: 45° | |||
| N type Female | V.S.W.R | |||
| Working temperature | ≤1.3 | |||
| -40~60℃ | Impedance(Ω) | |||
| 50ohm | ||||
