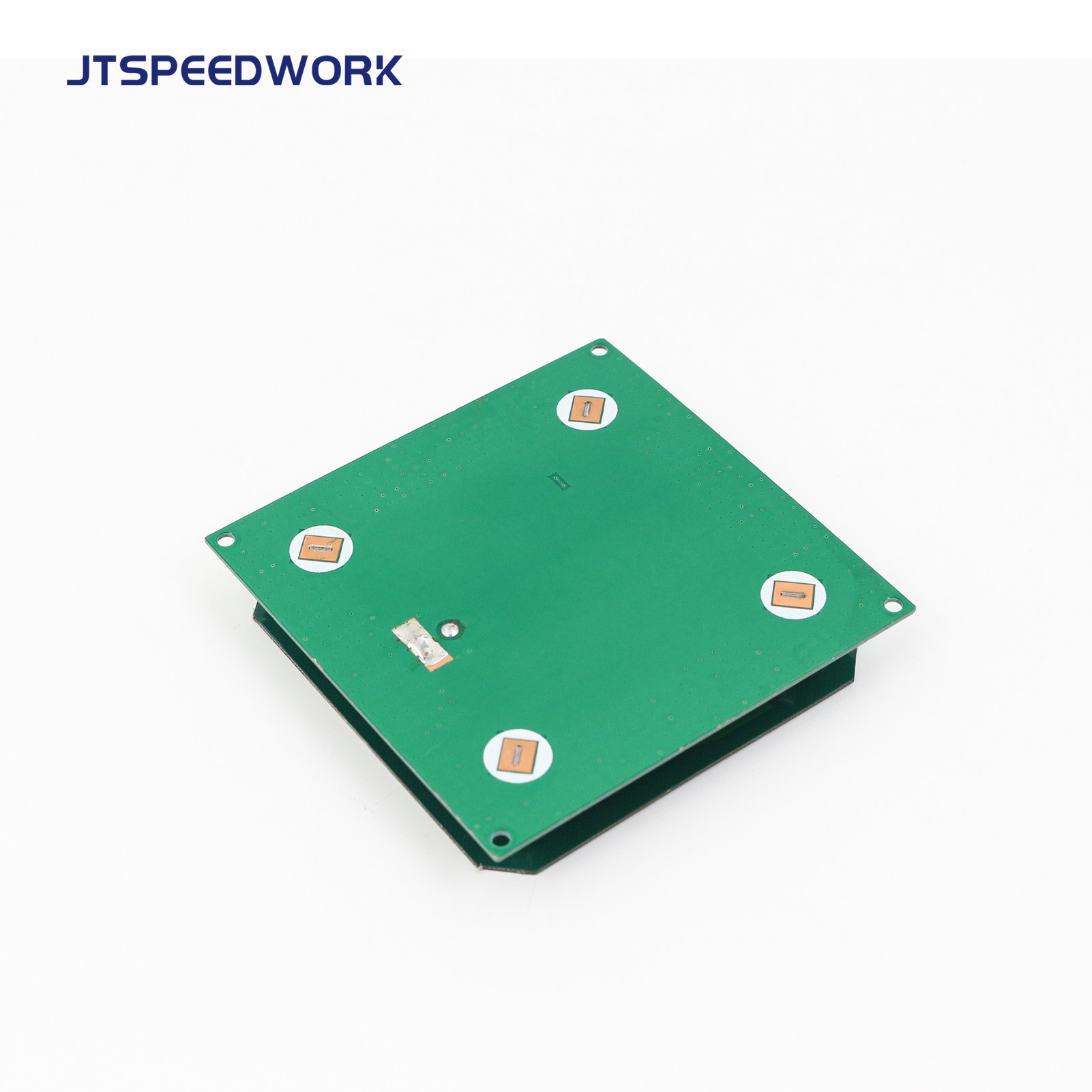

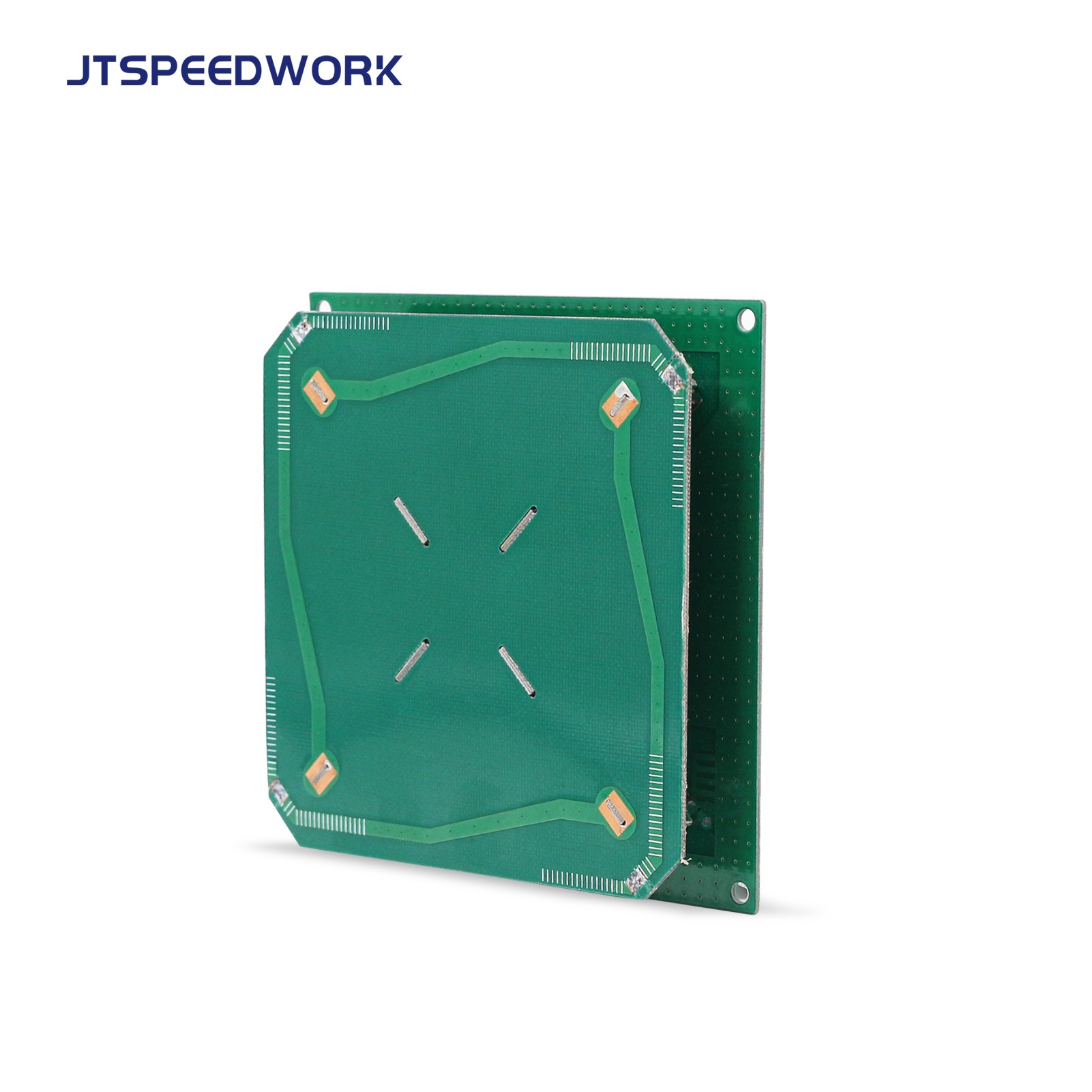

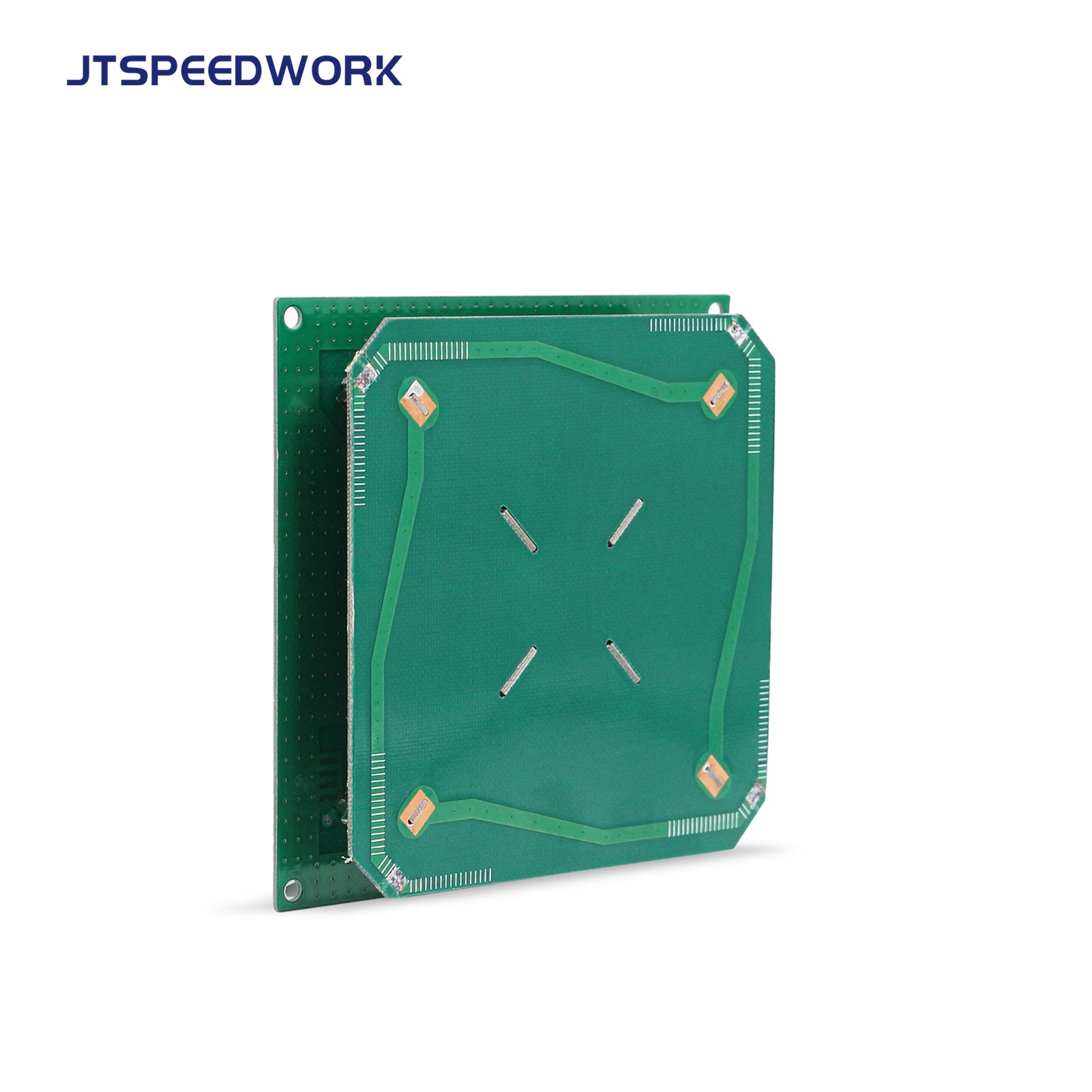

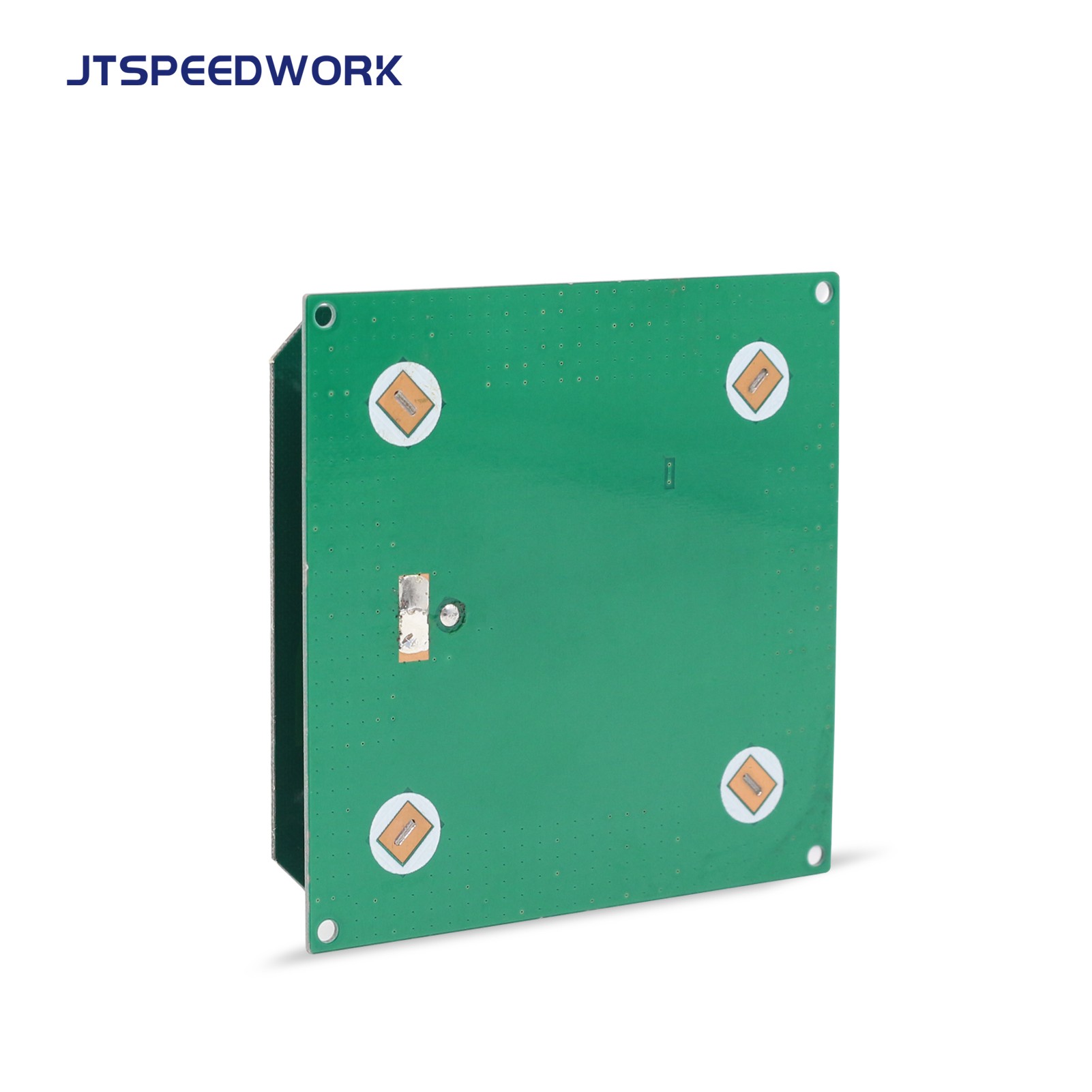

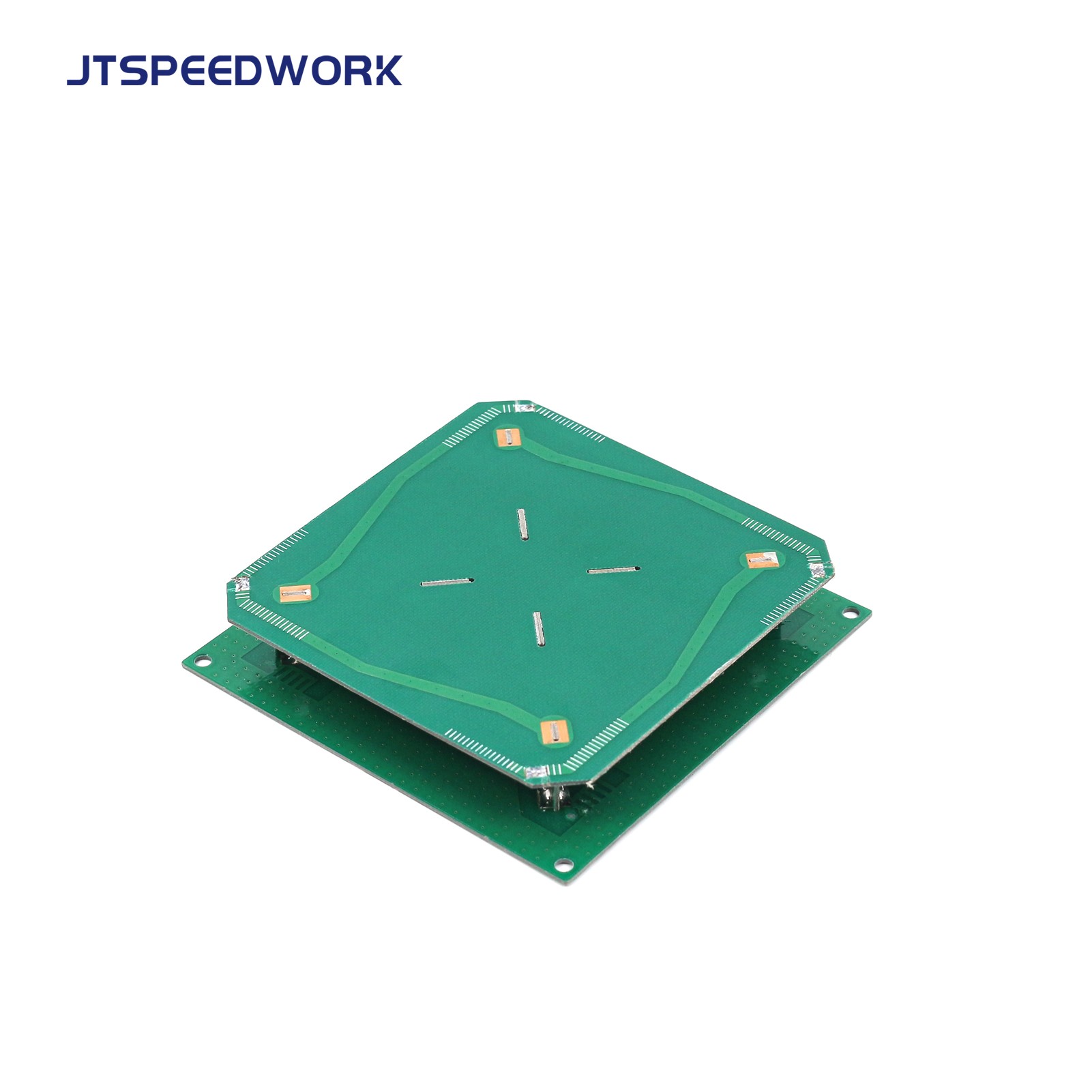

JT-T075R 4dBi 860-960MHz RFID UHF Spiral Circularly Polarized Antenna
JT-T075R is a 4dBi four-arm spiral circularly polarized antenna (75) is a universal far-field antenna suitable for UHF band RFID applications. It has the characteristics of small volume, high gain, low standing wave, good symmetry of the direction, and low axial ratio. Can be easily applied to terminal occasions such as UHF band RFID hand sets.
Item No :
JT-T075RColor :
GreenAntenna gain :
4dBiWorking frequency :
US:902-928MHZ | EU:865-868MHz
| Item No. | JT-T075R | |||
| Physical parameters | Antenna gain | |||
| Size | 75mm×75mm×13.5mm | 5.5dBi circularly polarized | ||
| Net weight | 27g | Frequency | ||
| Material | F4BM | US:902-928MHZ | EU:865-868MHz | ||
| Color | Green | Beam width | ||
| Connector | Hor:120° Ver:120° | |||
| MMCX Male or customized | V.S.W.R | |||
| Working temperature | ≤1.3:1 | |||
| -40℃~+ 85℃ | Impedance(Ω) | |||
| 50ohm | ||||
